Description

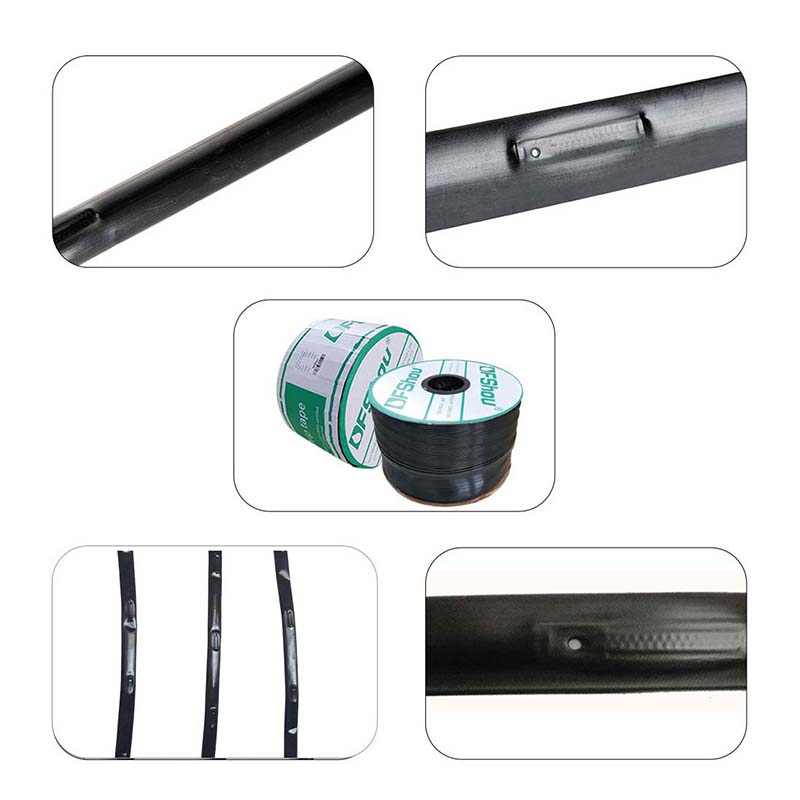

This thin-walled flat drip irrigation line delivers water and nutrients directly to plant root zones in agricultural settings. Manufactured from PE (Polyethylene) material using one-shot extrusion technology, it incorporates inlaid flat drippers with wide and long flow channels. The full turbulent flow within these channels creates a self-flushing action that reduces clogging risk and promotes uniform water distribution along the entire lateral line.
We provide tailored drip irrigation configurations to match specific crop requirements and field conditions. Our technical team can assist with system design and product selection for large-scale agricultural projects. Contact our sales team to request a quotation or discuss your commercial procurement needs.
Technical Parameters
Item No. | Diameter | Wall Thickness | Dripper Spacing | Flow Rate Options | Roll Length | Carton Size | G.W (Kgs) |
IPT1602100 | 16mm | 0.2mm | 100mm | 1.38/2.2/3.2 L/h | 1500m | Dn50×30 | 20 |
IPT1602200 | 16mm | 0.2mm | 200mm | 1.38/2.2/3.2 L/h | 2000m | Dn50×30 | 24 |
IPT1602300 | 16mm | 0.2mm | 300mm | 1.38/2.2/3.2 L/h | 2000m | Dn50×30 | 21 |
IPT1602400 | 16mm | 0.2mm | 400mm | 1.38/2.2/3.2 L/h | 2000m | Dn50×30 | 20 |
IPT1602500 | 16mm | 0.2mm | 500mm | 1.38/2.2/3.2 L/h | 2000m | Dn50×30 | 20 |
IPT1603100 | 16mm | 0.3mm | 100mm | 1.38/2.2/3.2 L/h | 1500m | Dn50×30 | 24 |
IPT1603200 | 16mm | 0.3mm | 200mm | 1.38/2.2/3.2 L/h | 1500m | Dn50×30 | 22 |
IPT1603300 | 16mm | 0.3mm | 300mm | 1.38/2.2/3.2 L/h | 1500m | Dn50×30 | 19 |
IPT1603400 | 16mm | 0.3mm | 400mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 18 |
IPT1603500 | 16mm | 0.3mm | 500mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 17 |
IPT1604100 | 16mm | 0.4mm | 100mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 22 |
IPT1604200 | 16mm | 0.4mm | 200mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 19 |
IPT1604300 | 16mm | 0.4mm | 300mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 18 |
IPT1604400 | 16mm | 0.4mm | 400mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 18 |
IPT1604500 | 16mm | 0.4mm | 500mm | 1.38/2.2/3.2 L/h | 1000m | Dn50×30 | 17 |
Parameter | Specification |
Diameter | 16 mm |
Wall Thickness Options | 0.2 mm, 0.3 mm, 0.4 mm |
Material | PE (Polyethylene) |
Dripper Type | Inlaid flat dripper with wide/long flow channel |
Flow Characteristics | Full turbulent flow, self-flushing |
Flow Rate Options | 1.38 L/h, 2.2 L/h, 3.2 L/h |
Dripper Spacing Options | 100mm, 200mm, 300mm, 400mm, 500mm (custom 0.1-2.5m available) |
Working Pressure | 50-100 kPa (0.2mm), 50-150 kPa (0.3/0.4mm) |
Recommended Pressure | 80-100 kPa (0.8-1.0 bar) |

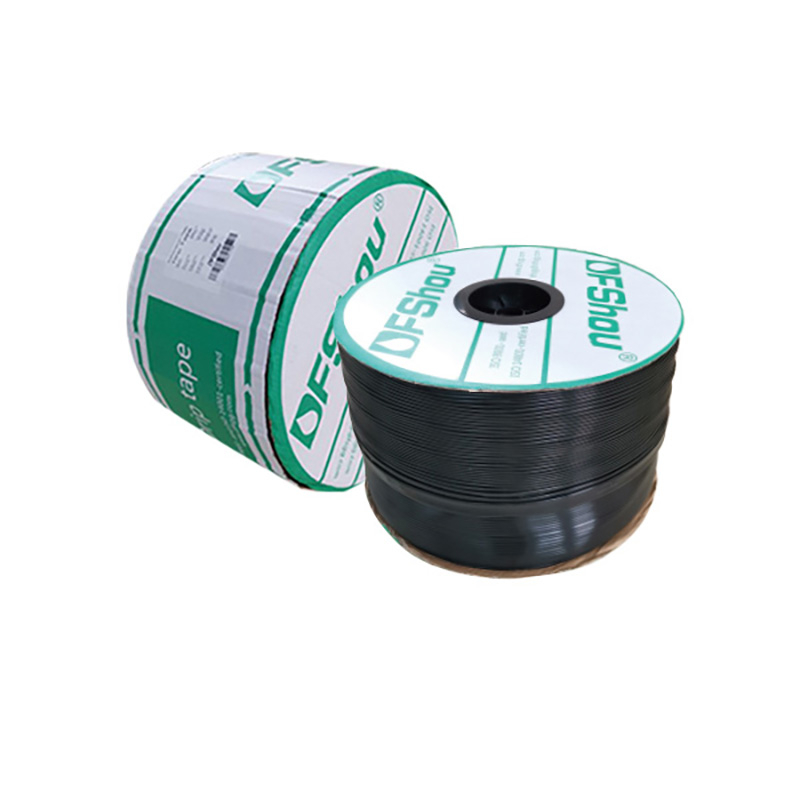

Roll Lengths | 1000m, 1500m, 2000m |
Filtration Requirement | 120 mesh minimum |
Wall Thickness | Working Pressure Range | Recommended Pressure |
0.2 mm | 50-100 kPa (0.5-1.0 bar) | 80-100 kPa (0.8-1.0 bar) |
0.3 mm | 50-150 kPa (0.5-1.5 bar) | 80-100 kPa (0.8-1.0 bar) |
0.4 mm | 50-150 kPa (0.5-1.5 bar) | 80-100 kPa (0.8-1.0 bar) |
Flow Rate | 0.02 MPa | 0.04 MPa | 0.06 MPa | 0.08 MPa | 0.10 MPa |
1.38 L/h | 0.68 | 0.95 | 1.17 | 1.29 | 1.46 |
2.2 L/h | 1.19 | 1.61 | 1.96 | 2.20 | 2.35 |
3.2 L/h | 1.70 | 2.32 | 2.77 | 3.13 | 3.32 |
Flow Variation | Flow Rate | 0.1 m | 0.2 m | 0.3 m | 0.4 m | 0.5 m |
±5% | 1.38 L/h | 36 | 51 | 63 | 75 | 85 |
±7.5% | 1.38 L/h | 43 | 59 | 72 | 86 | 99 |
±10% | 1.38 L/h | 52 | 68 | 83 | 96 | 119 |
±5% | 2.2 L/h | 63 | 75 | 85 | 95 | 110 |
±7.5% | 2.2 L/h | 74 | 86 | 99 | 112 | 128 |
±10% | 2.2 L/h | 85 | 96 | 119 | 135 | 155 |
±5% | 3.2 L/h | 51 | 65 | 83 | 95 | 110 |
±7.5% | 3.2 L/h | 59 | 73 | 87 | 102 | 118 |
±10% | 3.2 L/h | 64 | 81 | 94 | 110 | 128 |

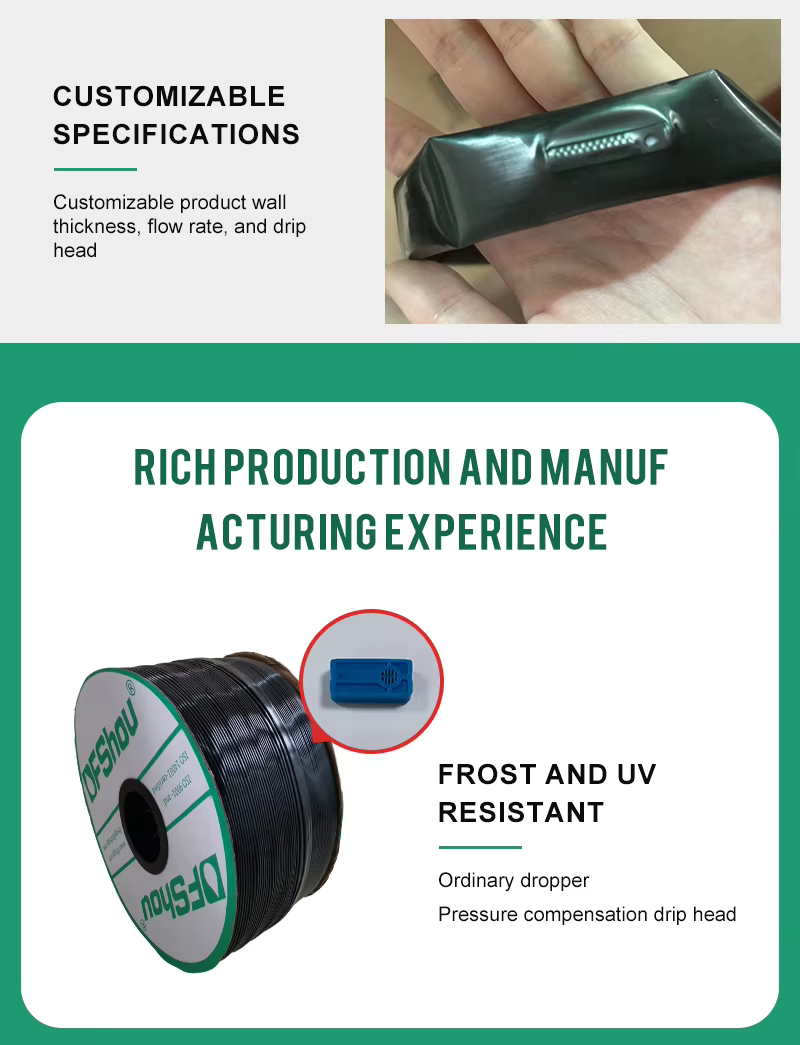

Custom Option | Details |
Dripper spacing | Custom spacing from 100mm to 2500mm |
Wall thickness | Special thicknesses available upon request |
Flow rates | Custom flow rates available for large orders |
Roll lengths | Custom lengths to match project requirements |

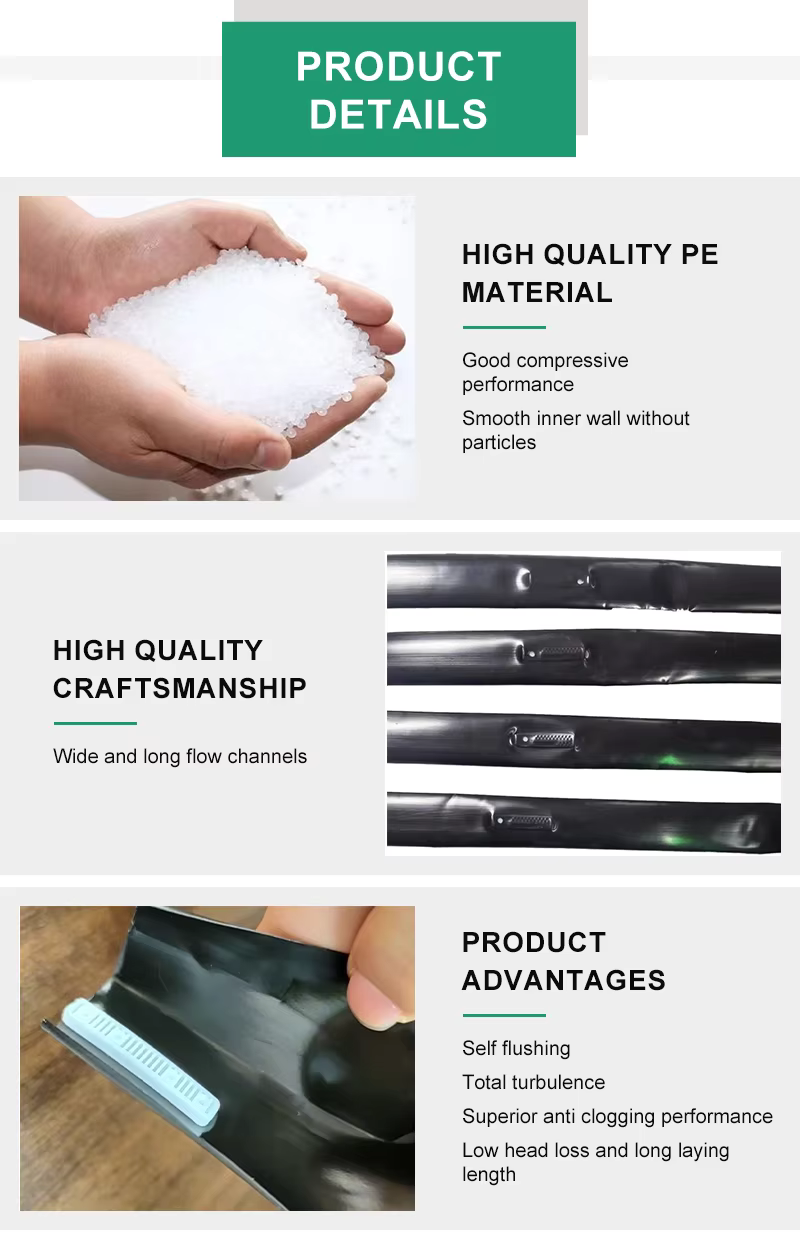

Product Features

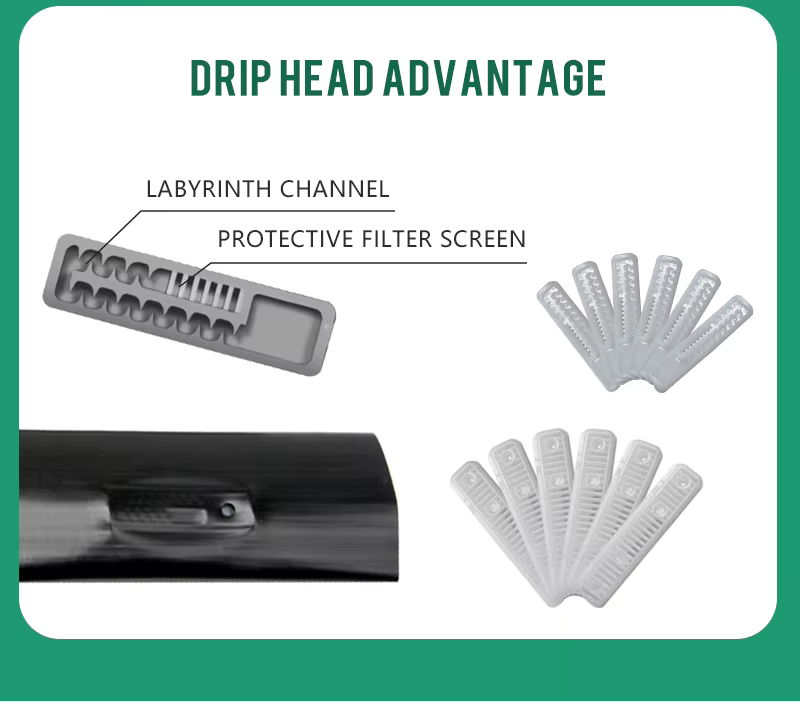

The inlaid flat dripper features a wide and long flow channel engineered to generate full turbulent flow. This turbulence continuously scours the channel during operation, preventing particle settlement and providing self-flushing capability. This design reduces maintenance requirements and supports consistent system operation with standard irrigation water quality.
Precision-molded drippers produce consistent flow rates with minimal deviation between individual emitters. Three flow rate options (1.38 L/h, 2.2 L/h, and 3.2 L/h) accommodate different soil types and crop water requirements. Uniform water delivery supports consistent crop development across planting areas.
The optimized hydraulic design minimizes friction loss along the tape, enabling extended lateral runs on flat terrain. A 16mm drip tape with 0.3mm thickness and 300mm dripper spacing can achieve lengths exceeding 80 meters with less than 10% flow variation. This reduces the number of manifold lines required, lowering fitting, labor, and system costs.
Manufactured from PE material, this drip tape resists corrosion from agricultural chemicals and fertilizers, and withstands UV radiation exposure. The seamless construction with smooth inner walls maintains structural integrity throughout the growing season.
Dripper spacing ranges from 100mm to 500mm as standard, with custom spacing from 100mm to 2500mm available. Wall thickness options include 0.2mm, 0.3mm, and 0.4mm to match different service life requirements and installation conditions.
Product Uses
This drip tape supports multiple agricultural operations:
Greenhouse Vegetable Production: Used for tomatoes, cucumbers, peppers, and lettuce. Drip irrigation can reduce air temperature by 20-30% and increase soil temperature by 2-3°C, potentially advancing crop maturation by up to one week.
Orchards and Vineyards: Delivers water and nutrients directly to root zones of tree fruits, nuts, citrus, and grapevines, reducing inter-row weed growth.
Field Row Crops: Suitable for cotton, corn, sugarcane, potatoes, strawberries, and melons. Long laying lengths support efficient installation in large-scale field operations.
Sloped and Irregular Terrain: When combined with pressure regulation, operates effectively on sloped fields where uniform water distribution is challenging with sprinkler systems.
Filtration: Install a 120 mesh (130 micron) or finer filter in the system
Pressure Regulation: Operate within the recommended pressure range of 0.8-1.0 bar
Orientation: Lay all emitters facing upward to prevent sediment settlement
Laying Method: Place tape horizontally on flat ground or along contour lines, avoiding excessive stretching
Coverage: When using under transparent film, prevent water droplet formation on the film surface
Flush the system thoroughly before initial operation
Clean filters regularly based on water quality
Inspect periodically for leaks or blockages
Flush lateral ends periodically to remove accumulated sediment
Drain and coil carefully for off-season storage in a cool, dry location away from sunlight
FAQ
Drip tape is a thin-walled (0.15-0.4mm), flat-collapsible product typically used for seasonal crops. Drip line has a thicker wall (0.6-1.2mm) and maintains a round shape, designed for permanent installations and multi-year crops.
A 120 mesh (130 micron) or finer filter is required to prevent emitter clogging.
The recommended operating pressure is 0.8-1.0 bar (80-100 kPa) for all wall thicknesses.
No, this standard drip tape is designed for above-ground use only. For subsurface drip irrigation, thicker-wall inline drip pipe specifically engineered for burial is recommended.
Service life depends on wall thickness, water quality, UV exposure, and handling. Thicker walls (0.4mm) typically last multiple seasons with proper care, while thinner walls (0.2mm) are generally used for single-season crops.
