LDPE Pipe Fittings – Complete Connection Solutions for Polyethylene Irrigation Systems

The product line includes bypass connectors, barb connectors, adapters, male and female thread connectors, elbows, tees, plugs, brackets, clamps, punchers, nipples, valves, and specialized locking fittings – everything needed to build a complete irrigation network from water source to emitters. Each fitting features precision-engineered connections that ensure secure, leak-proof performance under varying pressures and temperatures. Available in sizes from 16mm to 25mm with threaded options from 1/2" to 4", our fittings are compatible with standard LDPE pipes and deliver the reliability and ease of installation that professional growers and irrigation installers demand.

Product Advantage

Here are the key advantages of our LDPE pipe fittings:

• Premium Material Selection for Long Service Life

All fittings are manufactured from virgin PP (Polypropylene) and POM (Polyoxymethylene) engineering plastics, selected for their exceptional strength, chemical resistance, and UV stability. Unlike recycled or low-grade plastics that may become brittle after one season, our fittings maintain their mechanical properties for years of field service. The materials are resistant to common agricultural chemicals, fertilizers, and soil corrosion, ensuring system integrity throughout multiple growing seasons.

• Comprehensive Range for Every Connection Need

With over 50 different fitting types and sizes, our product range covers virtually every connection requirement in an LDPE irrigation system. From basic bypass connectors (BC16, BC20) and barb connectors (SC16, SC20, SC25) to specialized locking fittings (LBL16, LCL16, LTL16) and threaded nipples from 1/2" to 4", you'll find the exact fitting required. Standardized sizes (16mm, 20mm, 25mm) ensure compatibility with common LDPE pipe specifications.

• Precision-Engineered Leak-Proof Connections

Our fittings feature precision-molded barbed designs and compression mechanisms that create tight, reliable seals on LDPE pipes. The barbed grips hold the pipe securely without slipping, even under fluctuating water pressure. Many models include double rubber rings (BC16R, BC20R) or locking mechanisms (LBL16, LBLR16) for enhanced sealing performance, eliminating water waste at connection points and ensuring uniform pressure throughout the system.

• UV Stabilized for Outdoor Durability

All fittings contain UV stabilizers that prevent material degradation from prolonged sun exposure. Unlike standard plastics that become chalky and brittle after one season, our fittings maintain their strength and appearance for multiple years of outdoor use. This is especially important for above-ground systems where fittings are continuously exposed to sunlight.

• Easy Installation & Disconnection

Designed with the installer in mind, our fittings can be quickly pushed onto LDPE pipes by hand – no special tools required. Barb connectors (SC series) provide secure grip with simple insertion, while locking fittings (LBL, LCL, LTL series) allow for easy opening when system modifications are needed. The comprehensive range of punchers (P04, DP03, SP03, GP03) makes creating clean holes in PE pipes simple and efficient.

• Versatile Connection Options

Choose from multiple connection types to suit your specific system design: bypass connectors for tapping into mainlines, barb connectors for pipe-to-pipe connections, threaded fittings for valve and manifold integration, elbows for direction changes, tees for branch lines, and nipples for extending threaded connections. The range includes both standard and locking versions, as well as specialized fittings for plastic-coated hose applications (PBC16, PBC20).

Technical Parameters

Below are the detailed technical specifications for our LDPE pipe fittings.

Table 1: Bypass Connectors

Table 2: Barb Connectors & Adapters

Table 3: Male Thread Connectors

Table 4: Female Thread Connectors

Table 5: Elbows & Tees

Table 6: Plugs & Closures

Table 7: Brackets & Clamps

Table 8: Punchers & Installation Tools

Table 9: Nipples (Threaded Connectors)

Table 10: Locking Fittings (LDPE Pipe)

Table 11: Pipe Valves

Customization Available

Product Uses

Our comprehensive range of LDPE pipe fittings serves essential functions across multiple applications:

• Mainline to Submain Connections

Bypass connectors (BC16, BC20) and barb connectors (SC16, SC20, SC25) are used to tap into main PE pipes and create branch lines to irrigation zones. The precision-engineered barbs create secure, leak-proof connections that withstand system pressure and thermal expansion. Double rubber ring versions (BC16R, BC20R) provide enhanced sealing for demanding applications.

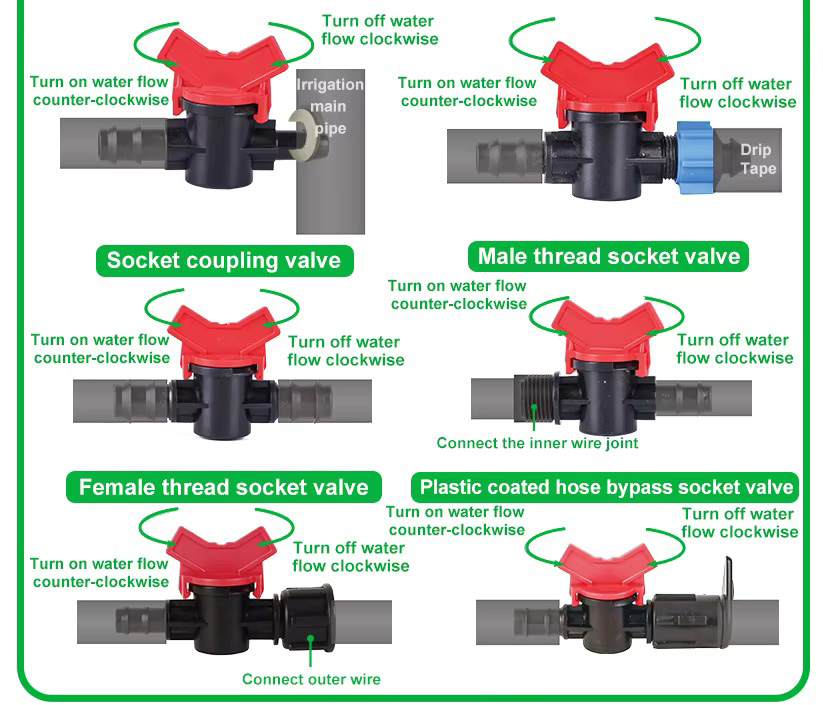

• Valve Integration & Flow Control

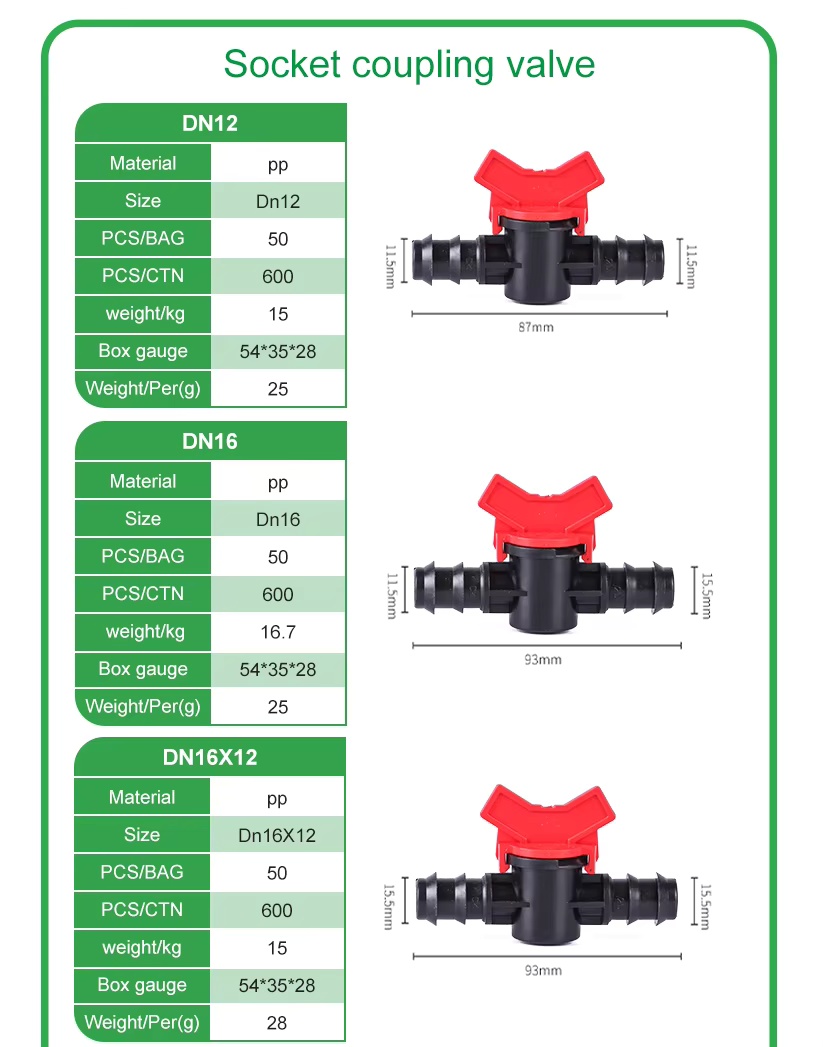

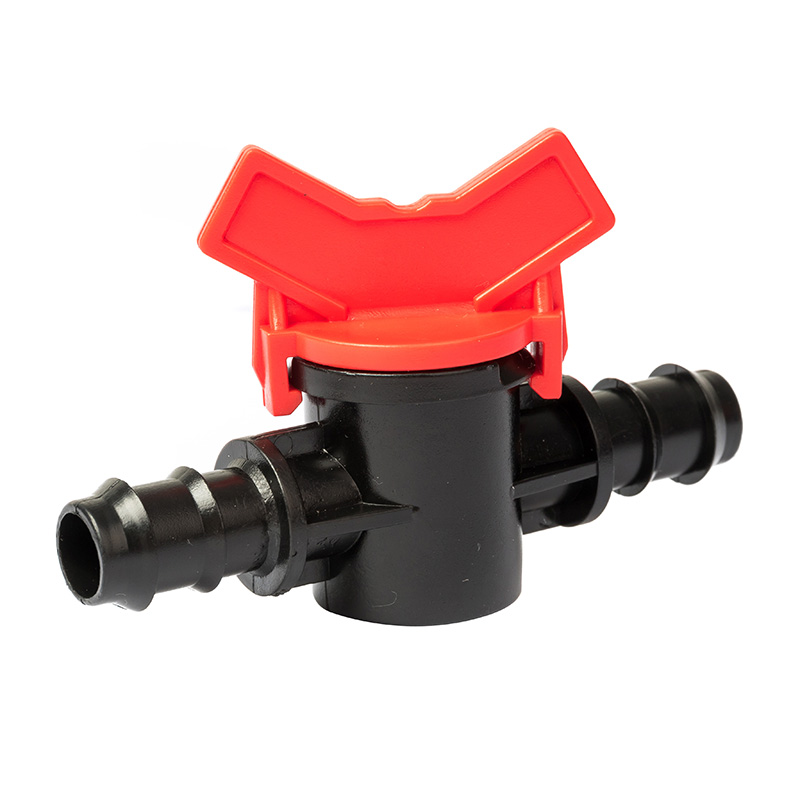

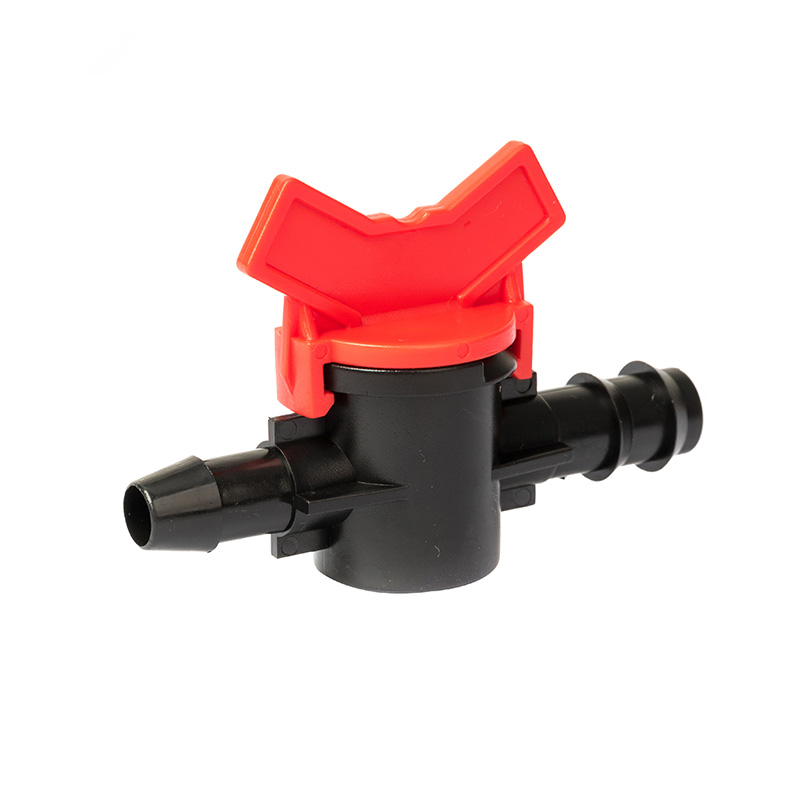

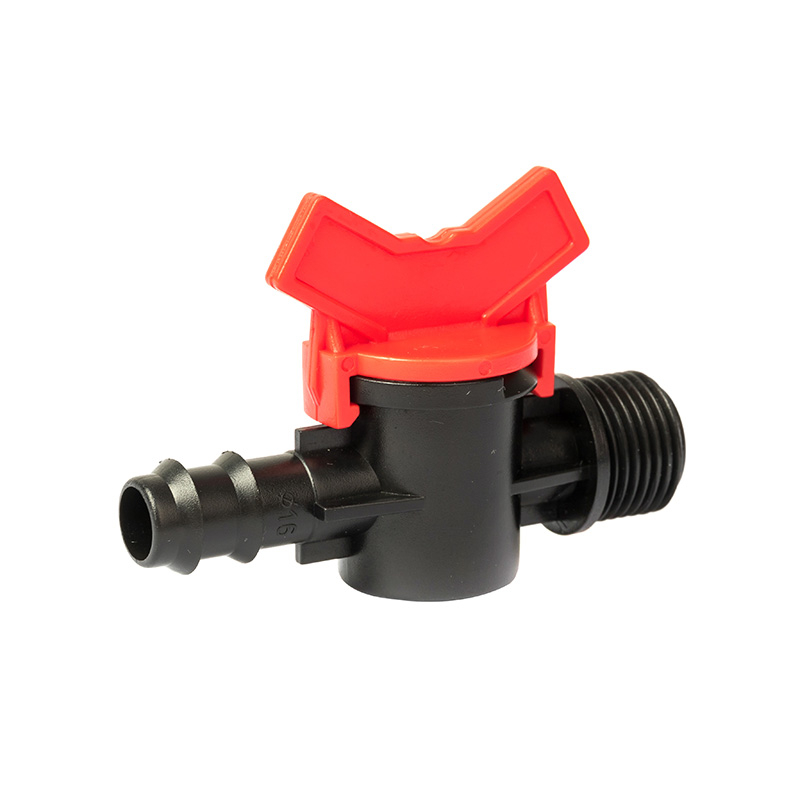

Our extensive valve range – including socket valves (SV16, SV20), male thread valves (MSV series), and bypass valves (SBV16R, SLBV16) – enables precise flow control at zone inlets, lateral connections, and system branches. Threaded options (TMV, MF series) integrate seamlessly with standard plumbing components for reliable shut-off and regulation.

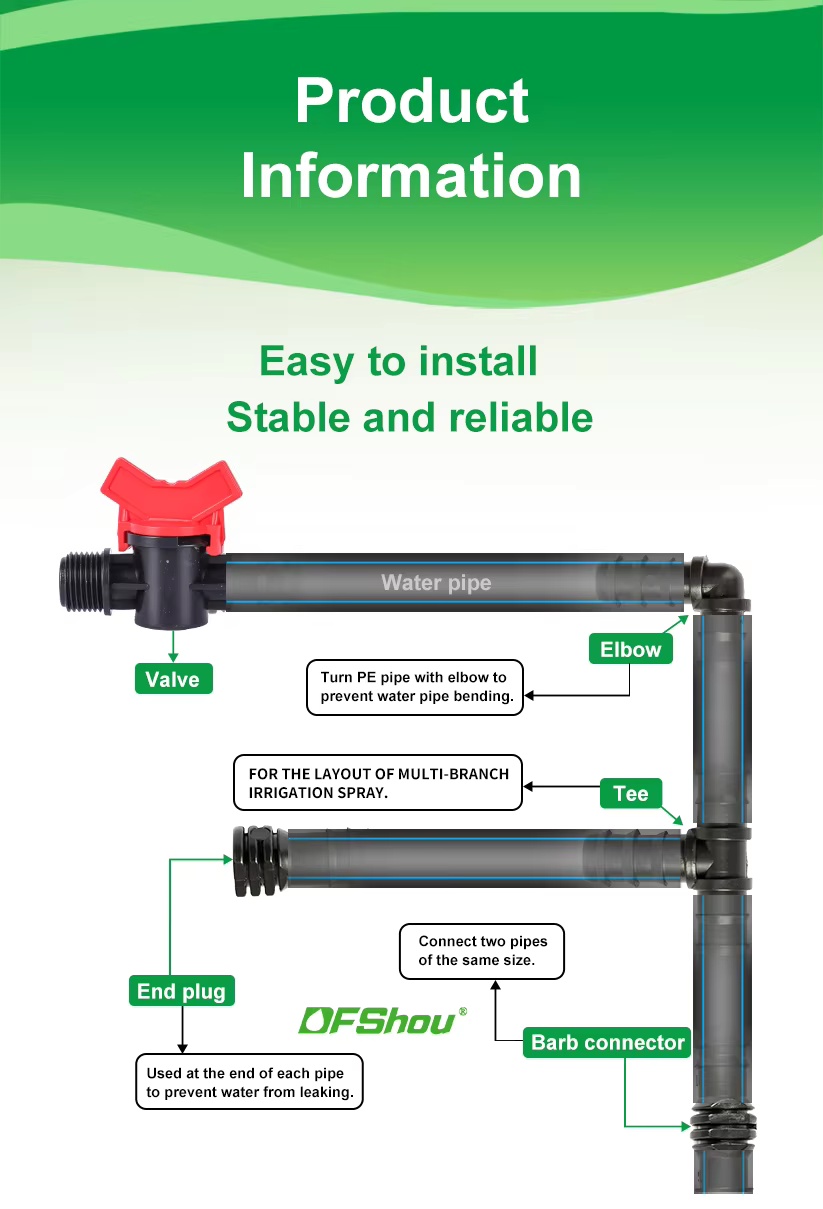

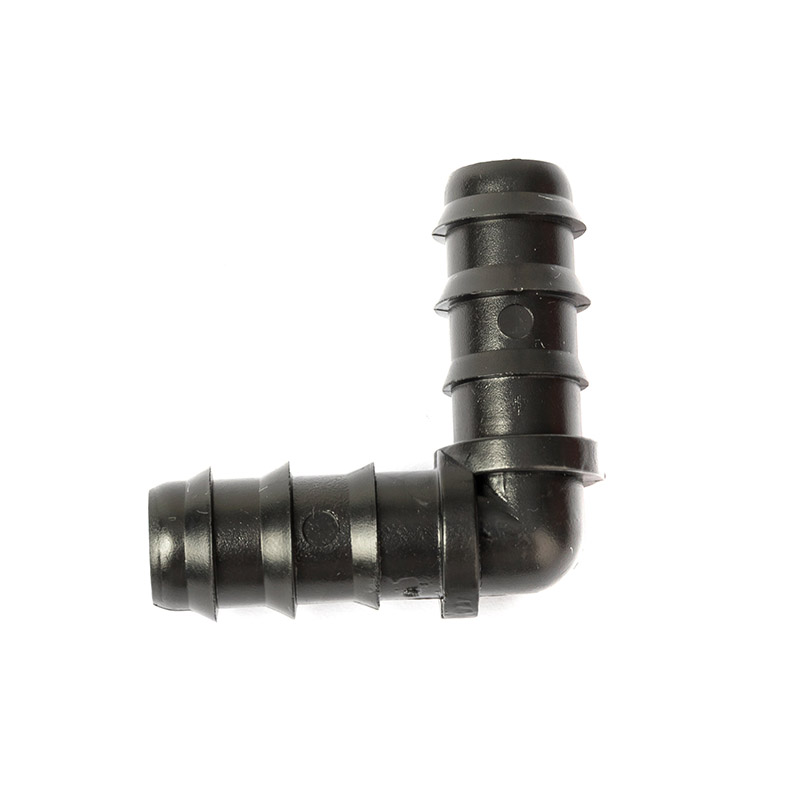

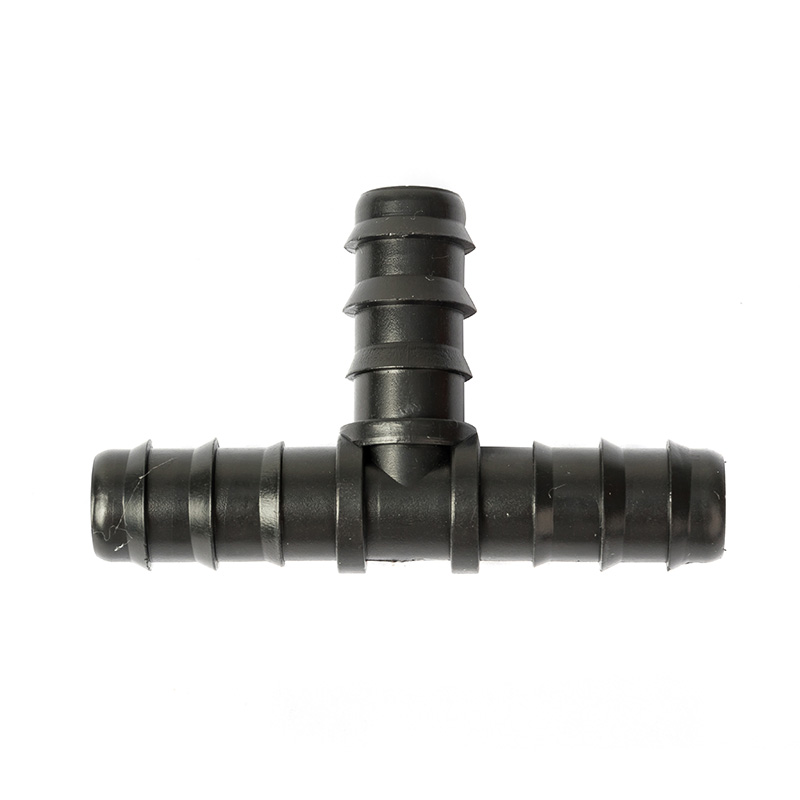

• Direction Changes & Branch Lines

Barb elbows (SE16, SE20, SE25) allow irrigation lines to navigate around obstacles, follow field contours, or change direction at row ends. Barb tees (ST16, ST20, ST25, ST1612) create branch lines to serve multiple crop rows from a single submain, reducing manifold requirements and simplifying system design.

• System Maintenance & Repair

Plugs (FP16, FP20, SP16, SP20) provide secure end closures for laterals and manifolds. During system flushing or seasonal shutdown, plugs can be removed for cleaning and reinstalled for operation. Couplings with lock (LCL16) enable quick repair of damaged pipe sections without replacing entire runs.

• Pipe Support & Securing

Brackets (IFB16, IB07, MIB0307) and clamps (CR16, CR20, SFC16, SFC20) secure irrigation pipes to structures, support lines above ground, and prevent movement during operation. This is particularly important in greenhouses and permanent installations where pipe positioning must be maintained.

• Installation & Maintenance Tools

Our punchers (P04, DP03, SP03, SP08, GP03) create clean, precise holes in PE pipes for installing bypass fittings and drippers. The various punch designs accommodate different installation preferences – from simple manual punches to drill-type tools for high-volume installations.

• Threaded Connections to System Components

Male thread connectors (MTC series) and female thread connectors (FTC series) provide seamless integration between LDPE pipes and threaded components such as valves, filters, pressure regulators, and water sources. Nipples (TMC series) extend threaded connections and adapt between different thread sizes from 1/2" to 4".

• Permanent Installations Requiring Security

Locking fittings (LBL16, LCL16, LML161/2, LTL16) are ideal for permanent installations where connections must remain secure despite vibration, thermal cycling, or potential tampering. The locking mechanism ensures fittings cannot accidentally disconnect during operation.

Product Operation Guide

• General Installation Steps:

1. Select the Correct Fitting Size: Ensure the fitting size matches your pipe diameter (16mm, 20mm, or 25mm) and thread size (1/2", 3/4", 1", etc.) where applicable.

2. Cut the Pipe Cleanly: Use a sharp pipe cutter or knife to make a straight, square cut. Remove any burrs or rough edges that could damage O-rings or affect sealing.

3. For Barb Fittings (SC, SE, ST Series):

  - Push the barbed end firmly into the pipe until fully seated

  - For tight connections, dip the pipe end in warm water to soften slightly

  - Ensure the pipe fully covers all barbs for maximum grip

  - No tools required – hand pressure is sufficient

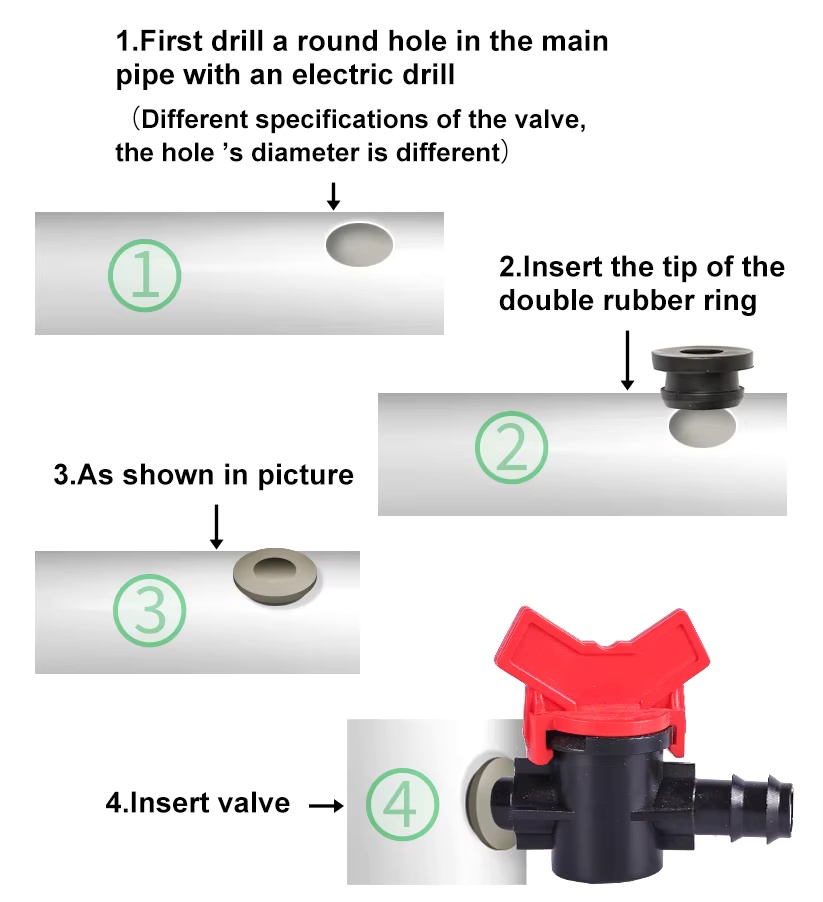

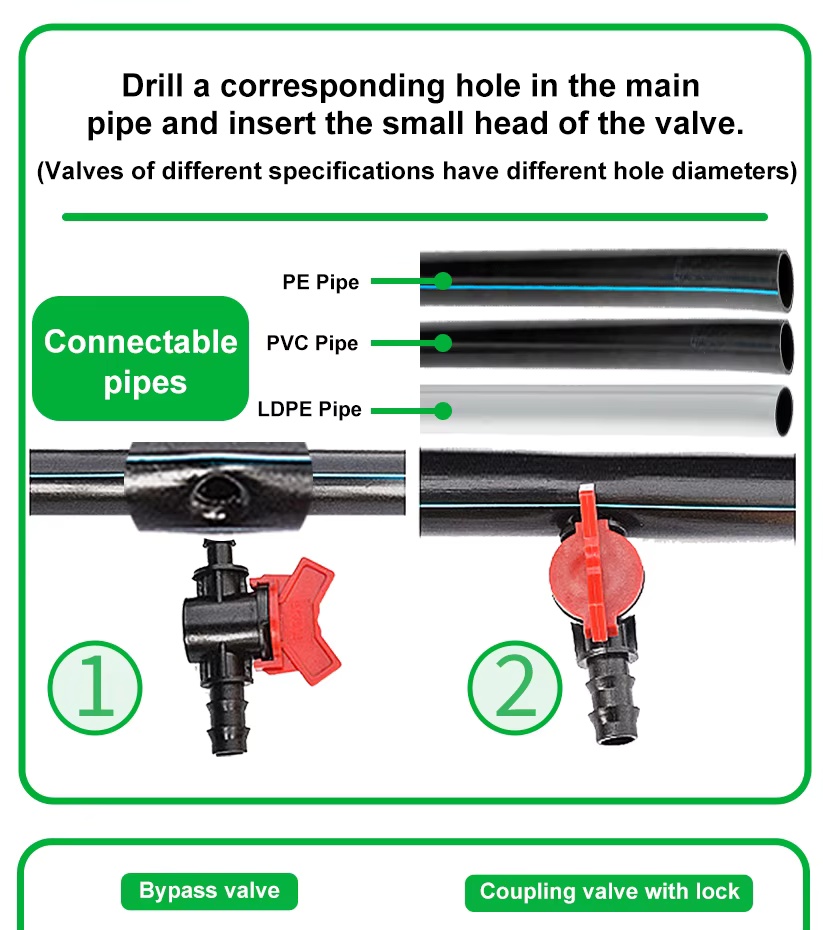

4. For Bypass Connectors (BC Series):

  - Use the appropriate puncher to create a clean hole in the main pipe

  - Push the barbed end of the bypass connector firmly into the hole

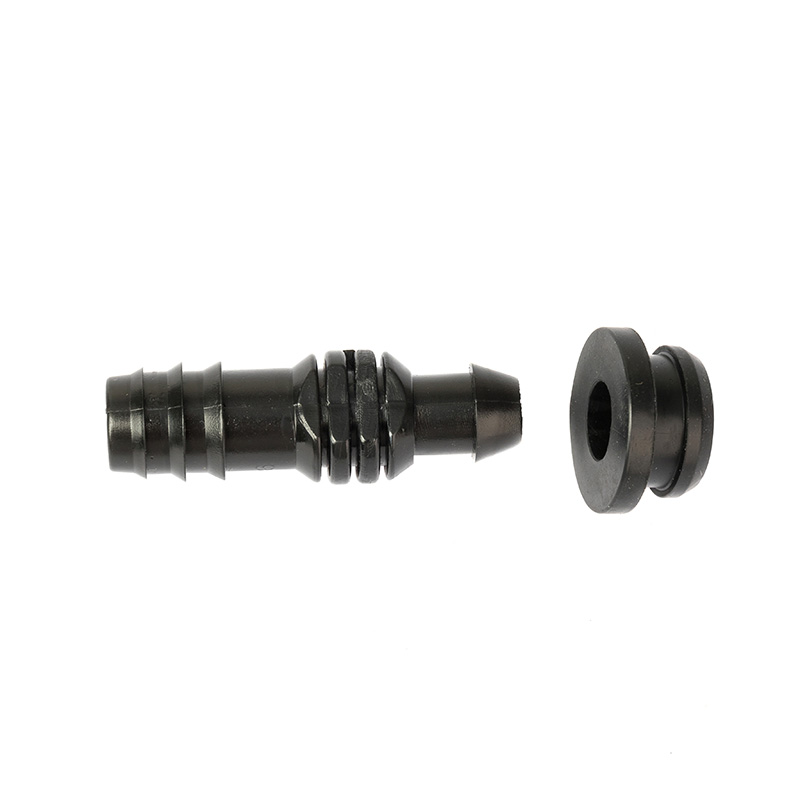

  - For models with rubber rings (BC16R, BC20R), ensure the ring is properly positioned

  - Connect the branch pipe to the other end

5. For Threaded Connections (MTC, FTC, TMC Series):

  - Wrap thread seal tape (PTFE tape) 2-3 times around male threads in clockwise direction

  - Screw the fitting into the female threaded port hand-tight

  - Use a wrench for final 1/4 to 1/2 turn – avoid over-tightening which may crack plastic fittings

  - Do not use pipe dope or sealant that may damage plastic

6. For Locking Fittings (LBL, LCL, LTL Series):

  - Insert the pipe into the fitting until it reaches the internal stop

  - Close the locking mechanism until it clicks into place

  - To disconnect, release the lock and pull the pipe free

  - Verify secure connection by gently tugging on the pipe

7. For Valves:

  - Install valves in accessible locations for easy operation

  - Note the flow direction arrow on the valve body

  - Ensure the valve handle has clearance for full rotation

8. System Testing:

  - After all fittings are installed, pressurize the system slowly

  - Check all connections for leaks

  - If leaks occur, depressurize and check fitting seating

  - For threaded connections, tighten slightly if needed

• Maintenance Tips:

- Periodically inspect fittings for signs of wear, cracking, or leakage

- Clean filters regularly to prevent debris from reaching fittings

- When disassembling for season change, store fittings in a cool, dry place away from direct sunlight

- Lubricate O-rings with silicone grease if they become dry or stiff

- Replace any fittings showing signs of UV damage or brittleness

FAQ

Q1: What materials are these fittings made from?

A1: Our fittings are manufactured from virgin PP (Polypropylene) and POM (Polyoxymethylene) engineering plastics. These materials offer excellent strength, UV resistance, and chemical stability for long-term agricultural use.

Q2: What pipe sizes are these fittings compatible with?

A2: Our fittings are designed for standard LDPE irrigation pipes in sizes 16mm, 20mm, and 25mm. Threaded connections range from 1/2" to 4" for integration with valves, filters, and water sources.

Q3: Do I need special tools for installation?

A3: Most fittings can be installed by hand without tools. For creating holes in PE pipes, we offer a range of punchers (P04, DP03, SP03, GP03). For threaded connections, a standard wrench may be helpful for final tightening.

Q4: Are these fittings UV resistant for outdoor use?

A4: Yes, all our fittings contain UV stabilizers and are designed for long-term outdoor exposure. They will not become brittle or degrade quickly under sunlight.

Q5: What is the difference between standard and locking fittings?

A5: Standard fittings rely on barb grip and friction to hold pipes. Locking fittings (LBL, LCL, LTL series) have a mechanical lock that positively secures the connection, making them ideal for permanent installations or applications where accidental disconnection must be prevented.

Q6: Can I reuse fittings after removing pipes?

A6: Yes, most fittings can be reused multiple times if removed carefully. Check the barbs and sealing surfaces for damage before reuse. For locking fittings, ensure the locking mechanism still functions properly.

Q7: What is the maximum working pressure for these fittings?

A7: Our fittings are designed to operate at pressures up to 6 bar (90 psi), which exceeds typical drip irrigation operating pressures (1-3 bar). Always ensure your system pressure does not exceed the rating of your pipes.

Q8: Do you offer bulk packaging for large projects?

A8: Yes, we offer various packaging options from small boxes (50-100 pieces) to bulk cartons (up to 5000 pieces). Contact our sales team to discuss your project requirements for the most cost-effective packaging solution.

Q9: What is the difference between a barb connector and a bypass connector?

A9: Barb connectors (SC series) are used for end-to-end pipe connections. Bypass connectors (BC series) are used to tap into the side of an existing pipe to create a branch line, without cutting the main line.

Q10: Are replacement seals and O-rings available?

A10: Yes, replacement seals and O-rings are available for most fitting models. Contact our sales team with your fitting model numbers to order replacement parts.
