Description

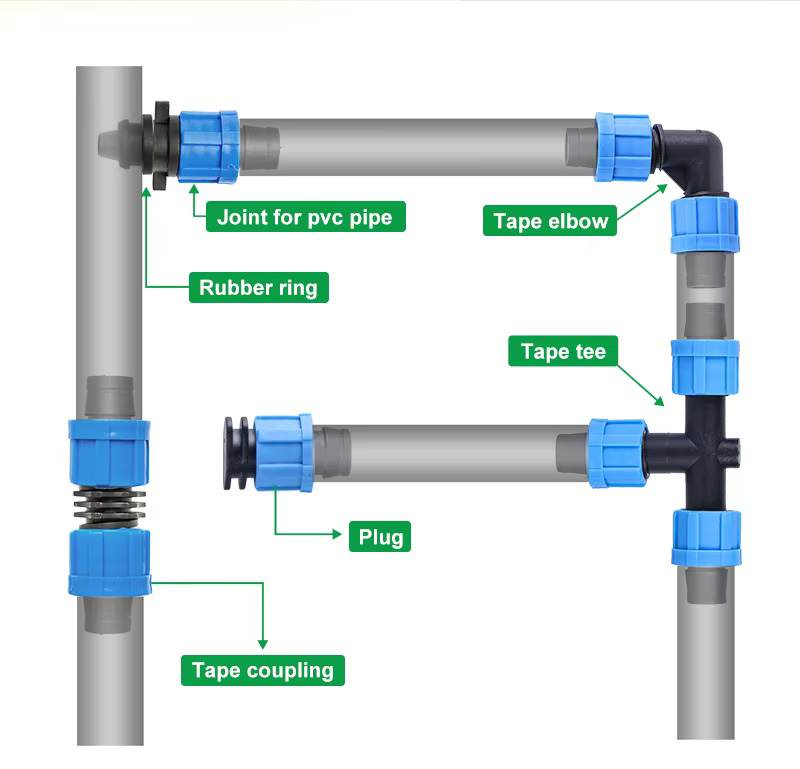

This range of drip tape fittings provides connections for 16mm and 17mm drip tape irrigation systems. Manufactured from PP (Polypropylene) and POM (Polyoxymethylene) engineering plastics, these fittings incorporate UV stabilizers for outdoor use. The materials resist degradation from agricultural chemicals and prolonged sun exposure. The product line includes bypass fittings, couplings, sockets, tees, elbows, valves, and locking connectors to construct complete drip irrigation networks.
Technical Parameters
Item No. | Description | Material | Packaging (Pcs/Carton) | Carton Size (cm) | G.W (Kgs) |
LB17 | Bypass with lock, Dn17 | PP | 100/1000 | 54×35×28 | 12 |
BC17DR | Bypass with double rubber ring, Dn17 | PP | 100/1100 | 54×35×28 | 15 |

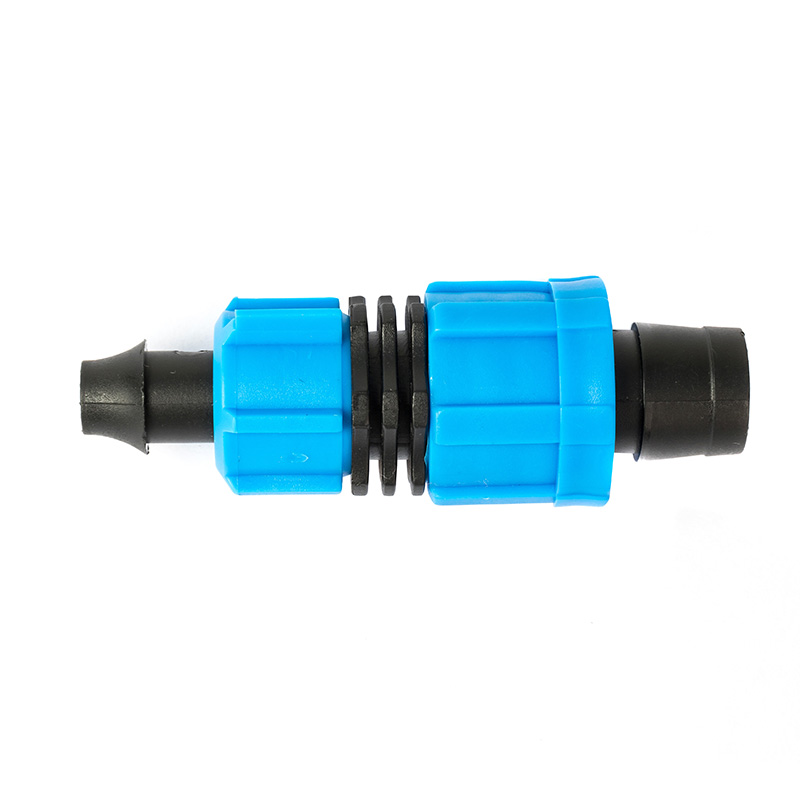

LC17 | Tape coupling, Dn17 | PP | 100/800 | 54×35×28 | 14 |
SC1716 | Socket joint, Dn17×16 | PP | 100/1200 | 54×35×28 | 14 |
MTC171/2 | Male thread joint, Dn17×1/2" | PP | 100/1000 | 54×35×28 | 14 |
MTC173/4 | Male thread joint, Dn17×3/4" | PP | 100/1000 | 54×35×28 | 15 |
FPBC17 | Foldable plastic coated bypass joint, Dn17 | PP | 50/550 | 54×35×28 | 15 |
CPBC17 | Crocodile plastic coated bypass joint, Dn17 | PP | 100/700 | 54×35×28 | 14 |
DPBC17 | Detachable crocodile with plastic bypass joint, Dn17 | PP | 50/550 | 54×35×28 | 14 |
SST171617 | Single socket tee, Dn17×16×17 | PP | 50/500 | 54×35×28 | 12 |
SST172017 | Single socket tee, Dn17×20×17 | PP | 50/450 | 54×35×28 | 11 |

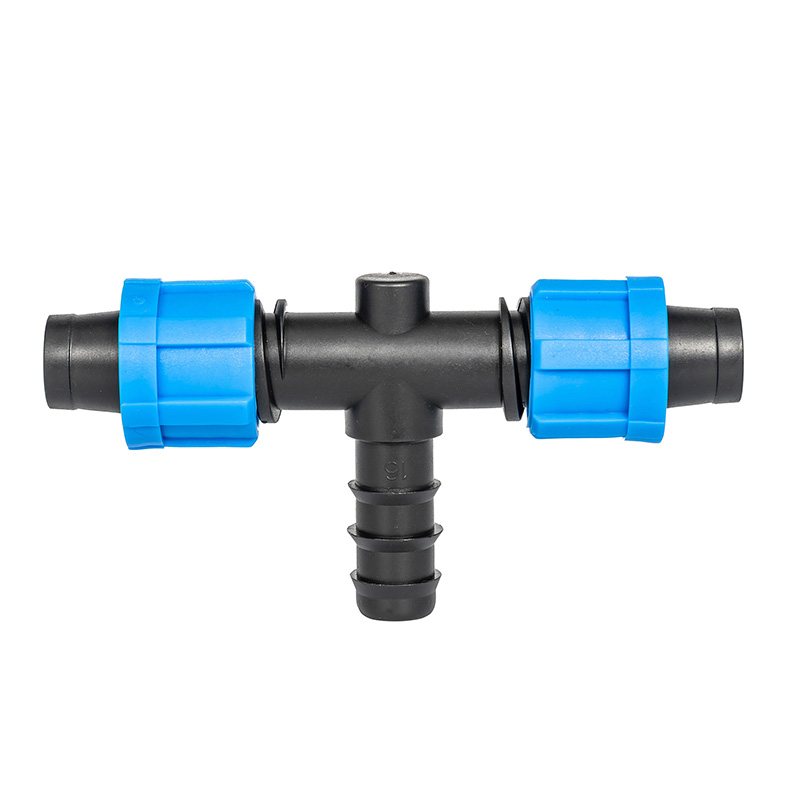

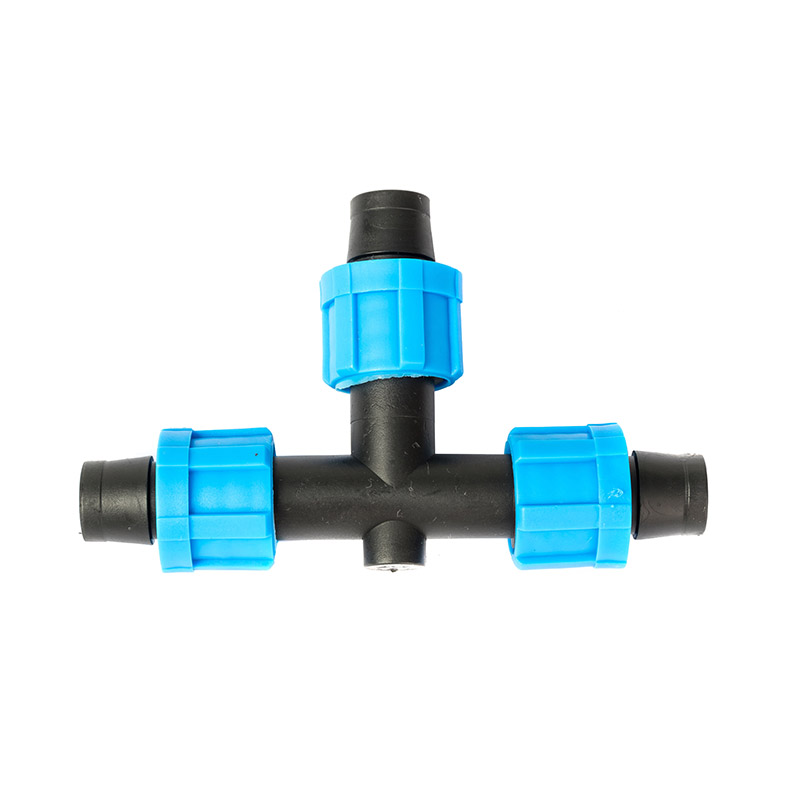

T17 | Tape Tee, Dn17 | PP | 50/350 | 54×35×28 | 10 |
MT171/2 | Tee with male thread, Dn17×1/2" | PP | 50/400 | 54×35×28 | 12 |
FPTC17 | Foldable plastic coated tee, Dn17 | PP | 50/300 | 54×35×28 | 14 |
P17 | Plug, Dn17 | PP | 100/1200 | 54×35×28 | 10 |
E17 | Elbow, Dn17 | PP | 100/1200 | 54×35×28 | 12 |

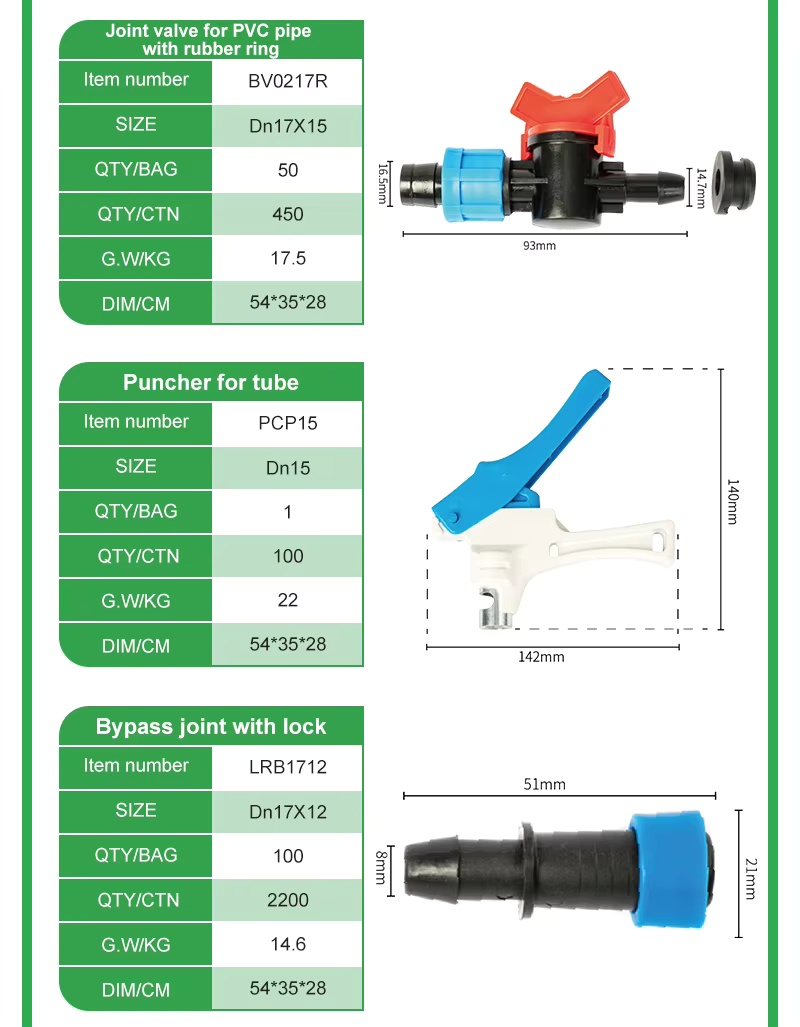

PCP15 | Plastic coated puncher, Dn15 | PP | 1/100 | 54×35×28 | 18 |
PCP17 | Plastic coated puncher, Dn17 | PP | 1/100 | 54×35×29 | 18 |
Item No. | Description | Material | Packaging (Pcs/Carton) | Carton Size (cm) | G.W (Kgs) |

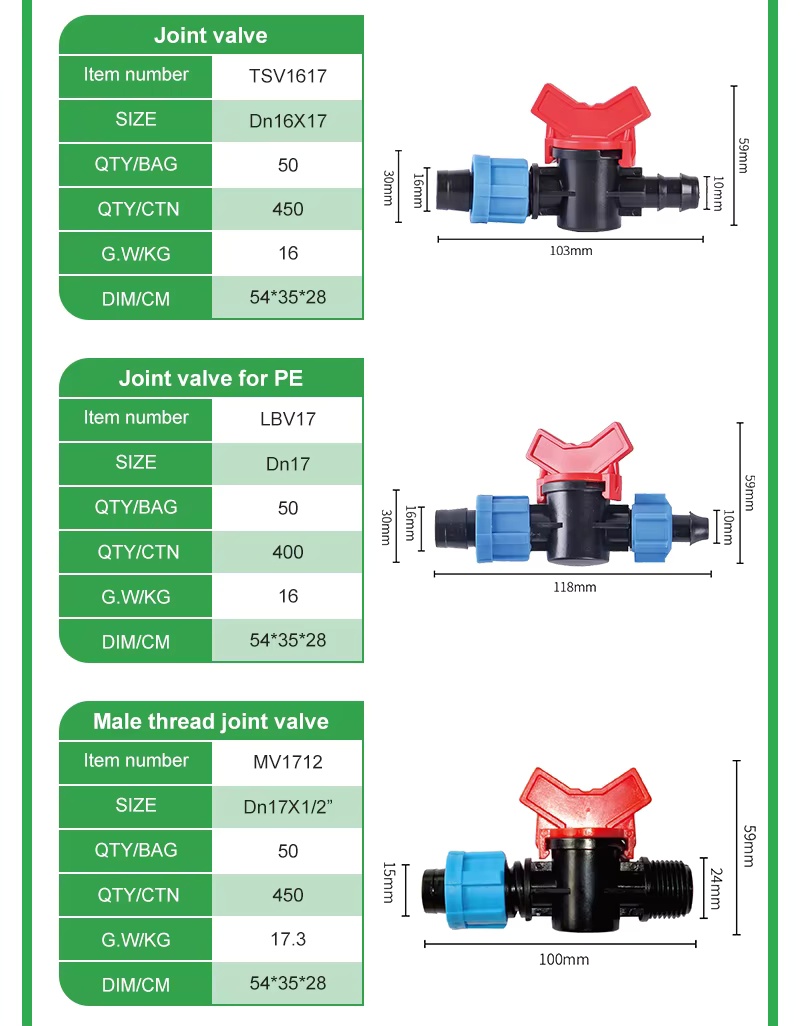

TSV1617 | Socket valve, Dn16×17 | PP | 50/450 | 54×35×28 | 16 |

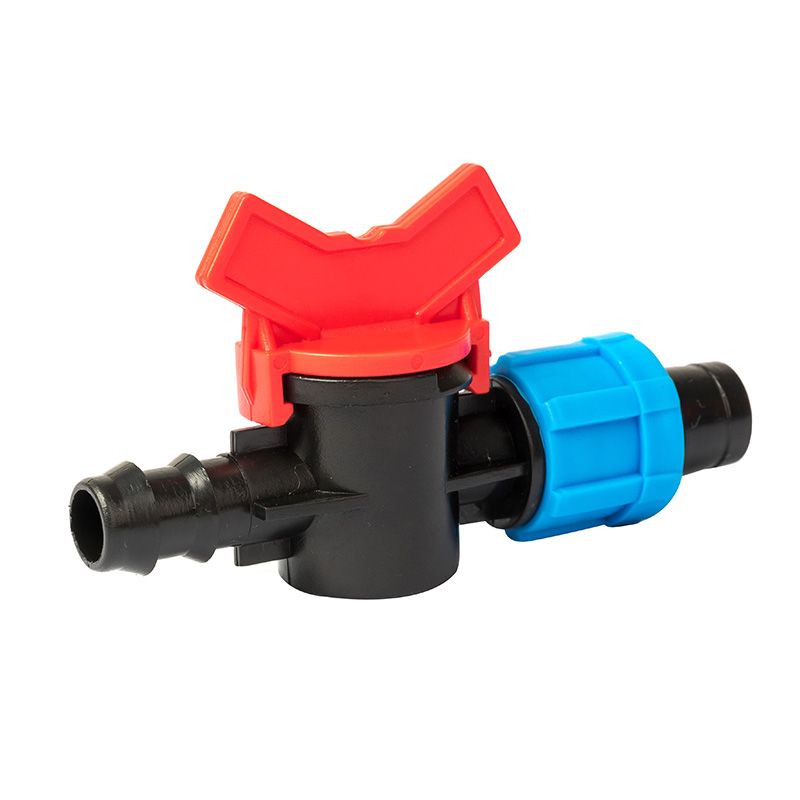

LBV17 | Bypass valve with lock, Dn17 | PP | 50/450 | 54×35×28 | 16 |
BV1712 | Bypass valve, Dn17×12 | PP | 50/500 | 54×35×28 | 16 |
BV17R | Bypass valve with rubber ring, Dn17 | PP | 50/450 | 54×35×28 | 19 |
MV171/2 | Male thread valve, Dn17×1/2" | PP | 50/450 | 54×35×28 | 18 |

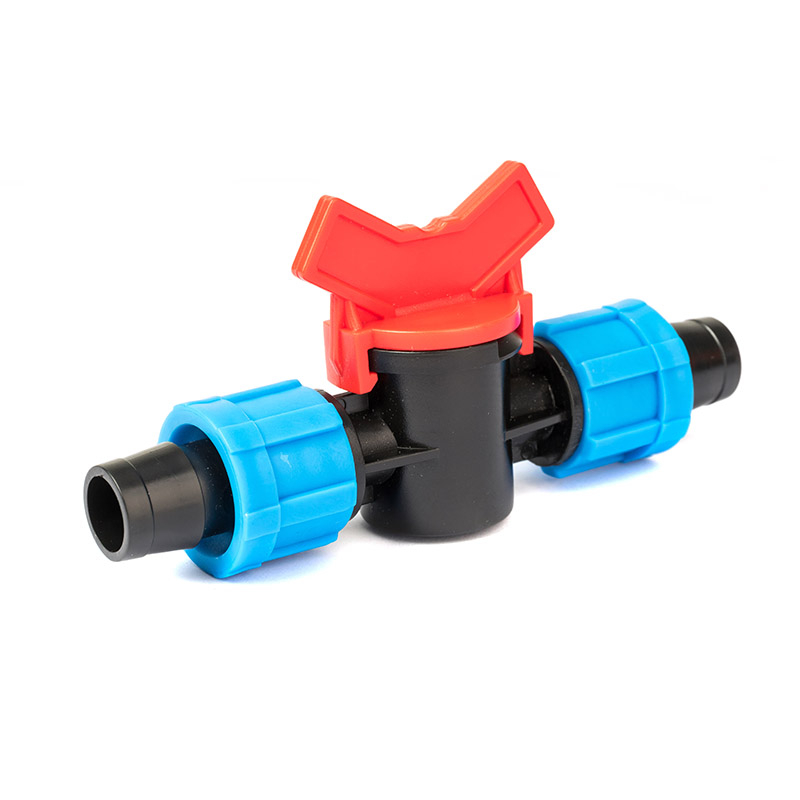

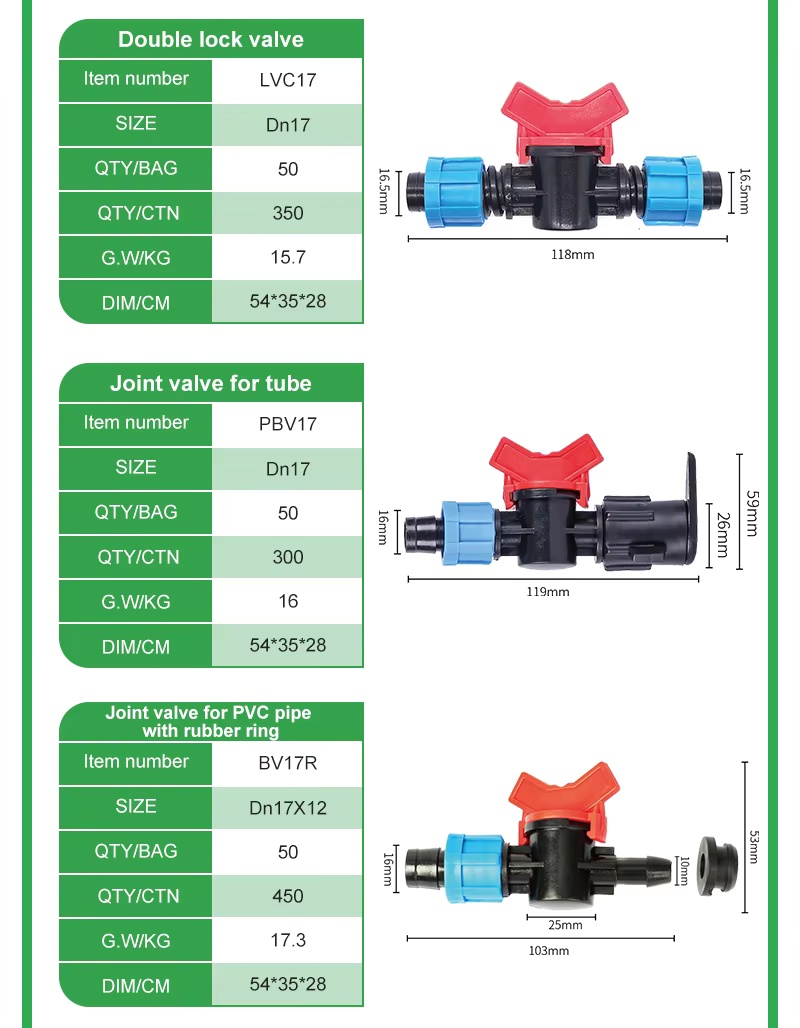

LVC17 | Double lock valve, Dn17 | PP | 50/400 | 54×35×28 | 17 |
PBV17 | Plastic coated bypass valve, Dn17 | PP | 50/270 | 54×35×28 | 15 |
DCPBV17 | Detachable crocodile plastic coated bypass valve, Dn17 | PP | 50/250 | 54×35×28 | 13 |
Item No. | Description | Material | Packaging (Pcs/Carton) | Carton Size (cm) | G.W (Kgs) |
LRB1712 | Bypass joint with lock, Dn17×12 | PP | 100/2000 | 54×35×28 | 13 |
LRB1712R | Bypass joint with lock and rubber ring, Dn17×12 | PP | 100/1200 | 54×35×28 | 13 |
LRC17 | Coupling with lock, Dn17 | PP | 100/1600 | 54×35×28 | 15 |
LRS1716 | Socket joint with lock, Dn17×16 | PP | 100/1800 | 54×35×28 | 13 |

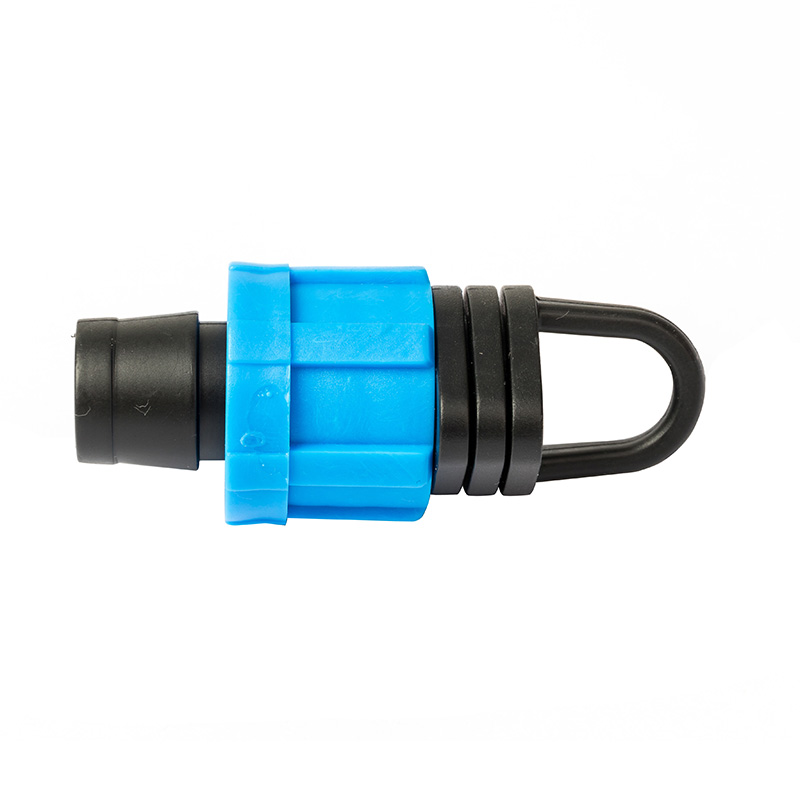

LRP17 | Plug with lock, Dn17 | PP | 100/2000 | 54×35×28 | 12 |
Product Features
All fittings use virgin PP and POM materials selected for their mechanical properties and chemical resistance. The materials maintain their structural integrity when exposed to common fertilizers and pesticides. UV stabilizers are added to prevent material breakdown from sunlight, extending service life in above-ground installations.
Fittings feature precision-engineered barbed ends and compression nuts that create seals on drip tape. The barbed design grips tape securely under operating pressures up to 3 bar (45 psi). Many models include rubber O-rings or double rubber rings to improve sealing performance. Threaded connections are manufactured to standard dimensions for compatibility with existing irrigation components.
Most fittings install by hand without specialized tools. Locking mechanisms on selected models allow for disconnection and reuse when system modifications are required. This design reduces labor time for seasonal installations where drip tape is removed and reinstalled annually. Repair couplings enable quick replacement of damaged tape sections without replacing entire laterals.
The line includes over 20 different fitting types for various connection requirements. Standard Dn16 and Dn17 sizes match common drip tape specifications. Fittings are available for connecting drip tape to PE pipes, creating branch lines, installing control valves, and terminating laterals. Foldable and crocodile-style bypass fittings accommodate installation in confined spaces.
Product Service
Customization services are available for commercial procurement orders. These include private label packaging, mixed container shipments combining different fitting types, custom colors for large quantity orders, and alternative engineering plastics upon request. Bulk packaging options range from small boxes of 50-100 pieces to cartons containing up to 2000 pieces.
FAQ
Dn16 fittings are designed for 16mm drip tape, while Dn17 fittings are for 17mm tape. Matching the fitting size to the tape diameter ensures proper connection. Some fittings (like SC1716) connect different sizes together.
Most fittings install by hand without tools. A puncher (PCP15/PCP17) creates clean holes in PE pipes for bypass fitting installation. A wrench may assist with final tightening of threaded connections.
All fittings contain UV stabilizers in their PP and POM materials, allowing them to withstand outdoor exposure.
Most fittings can be reused multiple times, particularly locking types designed for easy disconnection. Inspect O-rings and sealing surfaces for damage before reuse.
