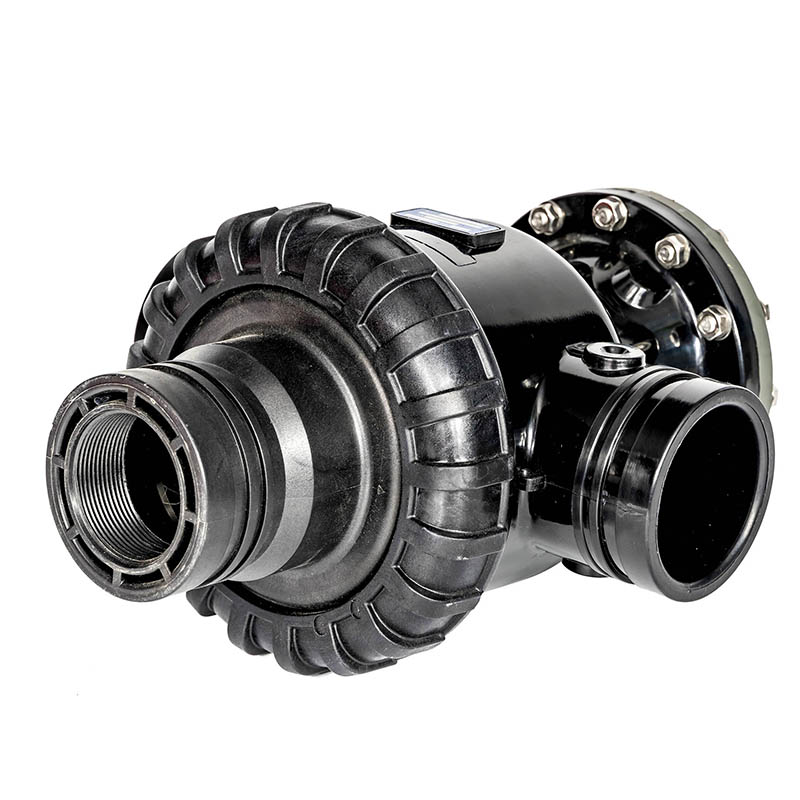

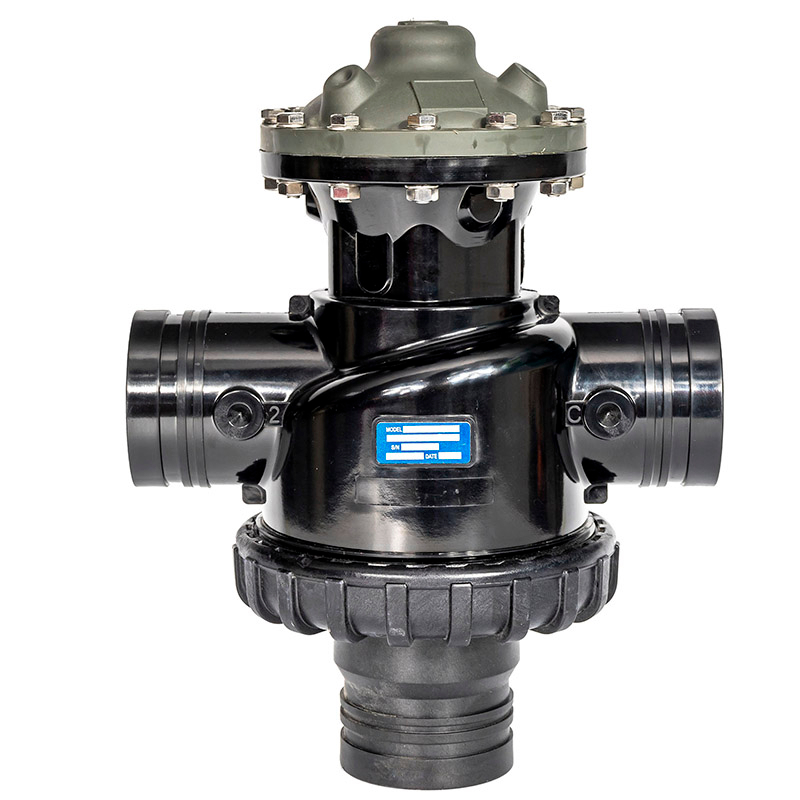

Backflush Valve

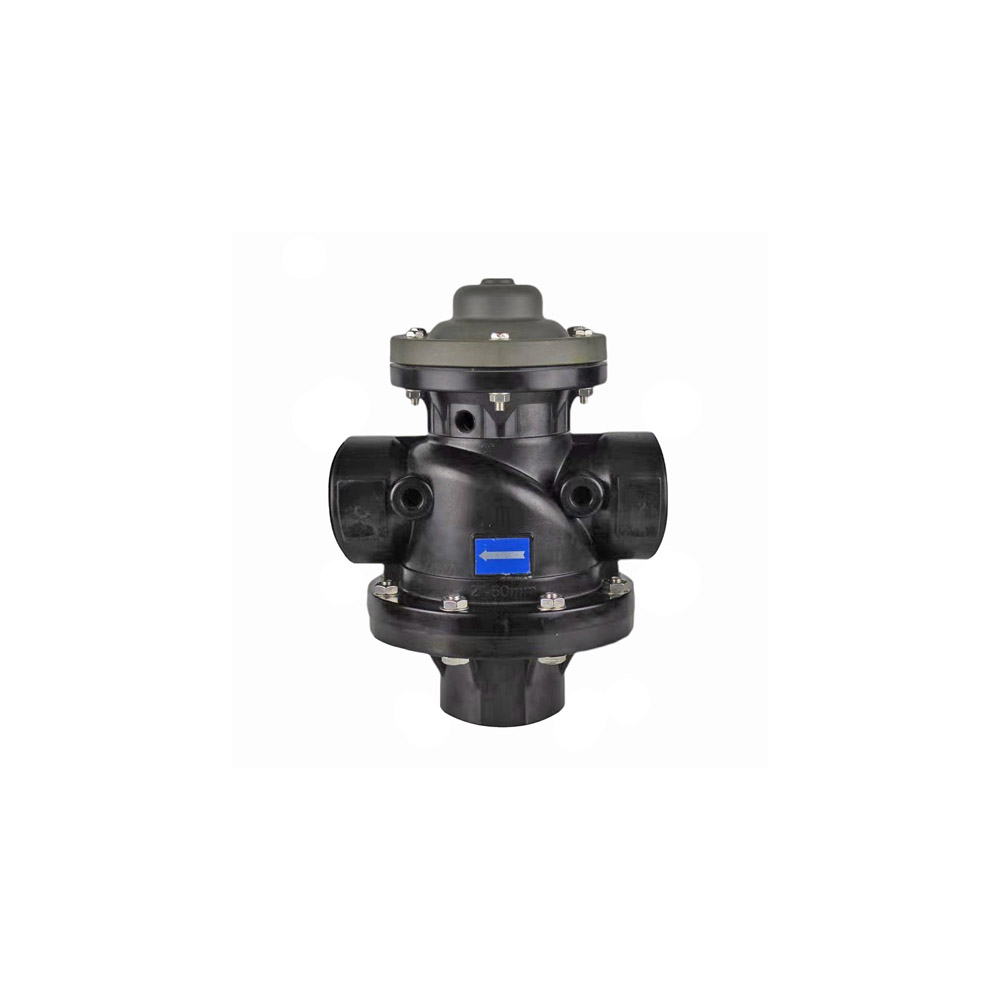

Backflush Valve Backflush Valve
Backflush Valve Backflush Valve
Backflush Valve Backflush Valve
Backflush Valve Backflush Valve

loading

Hydraulic Diaphragm Backflush Valve for Irrigation Filters

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Made of corrosion-resistant PA plastic, this hydraulic diaphragm backflush valve fits 2-4 inch irrigation filter systems perfectly. It operates stably without electric power, effectively preventing water hammer and pipeline cross-contamination. With mature batch production capacity, it provides durable and cost-effective valve solutions for agricultural water filtration projects.
Availability:
Quantity:

Description

Product Overview of Hydraulic Diaphragm Backflush Valve

This hydraulic diaphragm backflush valve serves as a specialized control component for automatic backflush filtration systems in agricultural irrigation. Driven by pipeline system pressure, the valve performs two-way switching to enable filter backflush operations without external power sources. Its design features a limited number of moving parts, supporting continuous operation with scheduled maintenance. The valve facilitates flow direction changes by closing the inlet while opening the drain port during backflush cycles, and reversing this configuration during normal filtration. Available in 2", 3", and 4" sizes with thread or bayonet connections, these valves integrate with multi-unit automatic backflush filtration systems that protect drip irrigation, sprinklers, and other irrigation equipment.

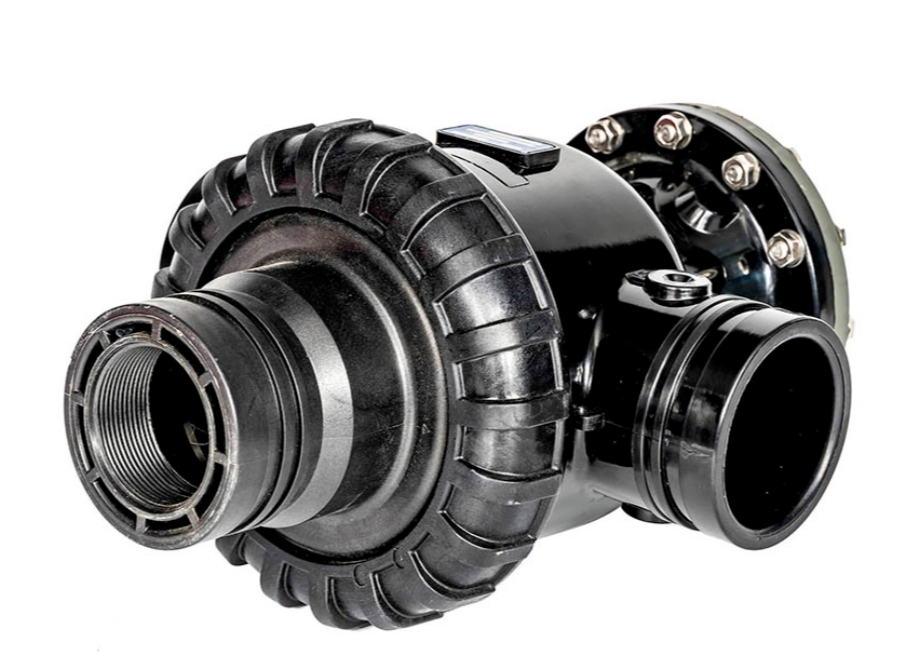

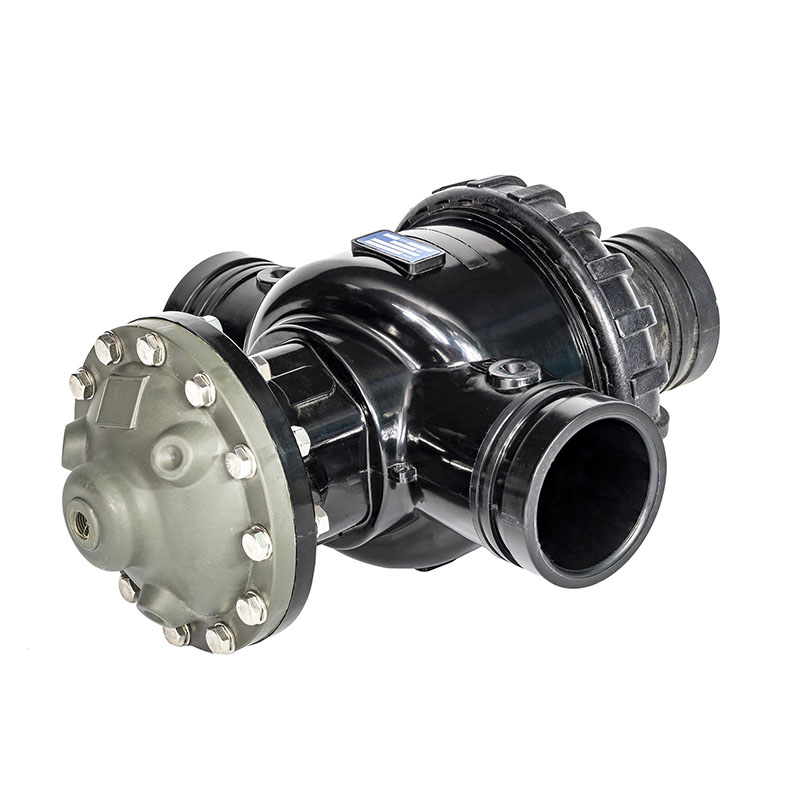

Hydraulic Diaphragm Backflush Valve

Operating Principle

During normal filtration, the inlet and outlet remain connected, allowing water to flow forward through the filter unit. The valve core assembly seats in the lower position, maintaining the drain port in a closed state. Water passes through the filter element and proceeds to the irrigation system.

When a hydraulic signal activates, pressurized water enters the diaphragm control cavity. As pressure increases within this cavity, the diaphragm moves, driving the valve core assembly upward. The valve core assembly rises until it seals against the upper seat, closing the inlet port completely. In this position, the drain port opens, creating a flow path from the outlet to the drain. Water flows in reverse, entering through the outlet as filtered water from adjacent units, passing backward through the filter element, and exiting through the drain port to remove accumulated contaminants.

When the hydraulic signal ceases and water discharges from the control cavity, pipeline pressure combined with spring elasticity returns the valve core assembly to the lower seat. The drain port closes, and the valve resumes normal filtration mode with inlet and outlet connected.

Technical Parameters

Specifications of Hydraulic Diaphragm Backflush Valve

Model Specifications

Interface

Connection Type

Cavity Capacity (L)

Maximum Pressure (kg/cm²)

Working Pressure (bar)

2"

Thread / Bayonet

0.13

10

0.7-10

3"

Bayonet

0.34

10

0.7-10

4"

Bayonet

0.55

10

0.7-10

General Specifications

Parameter

Specification

Valve Type

Hydraulically operated diaphragm control valve

Standard Pressure Rating

10 kgf/cm²

Minimum Operating Pressure

1.0 kgf/cm² (0.7 bar)

Working Pressure Range

0.7-10 bar

Body Material

PA (Polyamide) engineering plastic

Drive Mechanism

Diaphragm with removable assembly

Core Assembly

Plastic valve core with enhanced sealing

Function

Two-way switching for filter backflush

Suitable For

Automatic backflush filtration systems in irrigation

Maintenance

Online inspection with removable drive

Operating Principle

Mode

Inlet State

Outlet State

Drain Port State

Flow Direction

Filtration Mode

Open

Open

Closed

Inlet → Outlet (forward flow)

Backflush Mode

Closed

Open (as inlet)

Open

Outlet → Drain (reverse flow)

Dimensional & Flow Data

Size

Connection

Cavity Capacity

Typical Flow Range

Application

2"

Thread/Bayonet

0.13 L

3-35 m³/h

Small irrigation filter systems

3"

Bayonet

0.34 L

20-60 m³/h

Medium irrigation systems

4"

Bayonet

0.55 L

40-100 m³/h

Large agricultural projects

Customization Options

Custom Option

Details

Connection types

Threaded or bayonet options available

Pressure ratings

Higher pressure ratings upon request

Material options

Alternative engineering plastics available

Special configurations

Custom designs for specific irrigation applications

Product Uses

Applications of Hydraulic Diaphragm Backflush Valve

This backflush valve integrates with automatic backflush filtration systems in agricultural irrigation:

  • Multi-unit automatic filter systems for farms with at least two parallel filtration units

  • Screen filter systems for drip irrigation installations

  • Disc filter systems for greenhouse irrigation operations

  • Sand filter systems treating surface water from rivers and canals

  • Parallel filter configurations for large-scale agricultural projects

  • Water treatment applications in agricultural processing facilities

Product Operate Guide

Installation & Maintenance

Installation Steps

Install the backflush valve at the designated position in the filter manifold system, following the flow direction marking on the valve body.

Mount the valve in an accessible location with adequate space for the removable drive assembly.

Connect inlet, outlet, and drain ports according to system design. Apply PTFE tape to male threads for threaded connections. Ensure proper engagement and locking for bayonet connections.

Connect the hydraulic control line from the controller to the diaphragm control cavity port. Secure tubing and eliminate kinks or restrictions.

Slowly pressurize the system and check all connections for leaks. Verify valve operation by initiating a manual backflush cycle.

Maintenance Procedures

Conduct routine inspections to check for leaks at connections, verify valve operation during backflush cycles, and inspect control line connections for damage.

Remove the drive assembly independently for inspection without disturbing the valve body or pipeline connections. Inspect the diaphragm for wear or damage and clean the control cavity if necessary. Reassemble and verify operation.

FAQ

FAQ About Hydraulic Diaphragm Backflush Valve

How does the backflush valve operate in an irrigation filter system?

The valve operates using pipeline pressure. During normal filtration, inlet and outlet are connected, supplying water to irrigation systems. When control pressure enters the diaphragm cavity, the valve core moves upward, closing the inlet and opening the drain port. Water then flows in reverse from outlet to drain for backflushing, using filtered water from other filter units.

What is the minimum operating pressure for irrigation applications?

The minimum operating pressure is 1.0 kgf/cm² (0.7 bar). The valve requires at least this pressure for operation in irrigation systems.

What is the maximum pressure rating?

The standard pressure rating is 10 kgf/cm², suitable for most agricultural irrigation systems. Higher pressure ratings are available upon request.

What materials are used in construction?

The valve body is manufactured from PA (Polyamide) engineering plastic, which resists corrosion, acids, alkalis, and agricultural chemicals used in fertigation.

How is the valve maintained in field conditions?

The drive assembly can be removed independently for online inspection and maintenance without disturbing the valve body or pipeline connections. This allows diaphragm inspection and cleaning without shutting down the entire irrigation system.
