Description

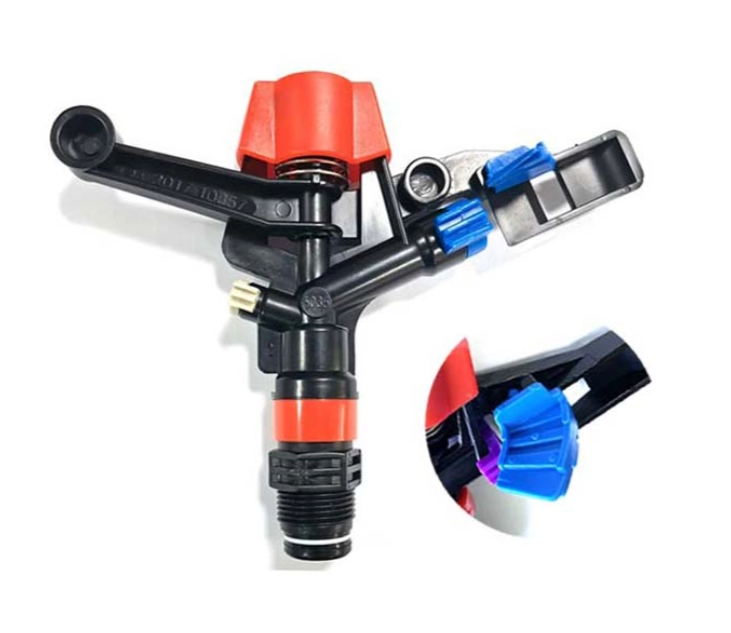

This impact sprinkler series supports irrigation operations across agricultural, horticultural, and landscape settings. Nozzles are manufactured from high-strength engineering plastics or metal materials with precision-engineered designs. These sprinklers operate stably across a 0.15-0.4 MPa working pressure range, producing uniform water distribution. They generate small droplet diameters with controlled atomization, delivering water suitable for various crop types and environmental conditions.
Technical Parameters
Item No. | Description | Connection | Packaging (Pcs) | Measurement (cm) | G.W (Kgs) |
RS5022 | Impact sprinkler | 1/2" | 1/200 | 54×35×28 | 12 |
RS5035 | Impact sprinkler | 3/4" | 1/100 | 54×35×28 | 12 |
SP3302 | Rotary sprinkler, Blue nozzle | 1/2" | 10/300 | 54×35×28 | 15 |
SP3303 | Rotary sprinkler, Green nozzle | 1/2" | 10/300 | 54×35×28 | 15 |
IPRS1001 | Insect-proof rotating sprinkler | 1/2" male thread | 10/200 | 54×35×28 | 11 |
IPRS1002 | Insect-proof rotating sprinkler | 3/4" male thread | 10/200 | 54×35×28 | 11 |
BMS1001 | Butterfly type sprinkler | 3/4" female thread | 50/300 | 54×35×28 | 13 |
BMS1002 | Butterfly type sprinkler | 1/2" male thread | 50/300 | 54×35×28 | 13 |
BMS1003 | Butterfly type sprinkler | 1/2" male thread | 50/300 | 54×35×28 | 13 |
Item No. | Nozzle Diameter (double nozzle) | 0.2 MPa Flow (m³/h) | 0.2 MPa Radius (m) | 0.3 MPa Flow (m³/h) | 0.3 MPa Radius (m) | 0.4 MPa Flow (m³/h) | 0.4 MPa Radius (m) |
RS5022-1 | 2.5 + 1.6 mm | 0.47 | 9.5 | 0.58 | 10.0 | 0.67 | 10.0 |
RS5022-2 | 3.0 + 1.6 mm | 0.61 | 10.0 | 0.76 | 10.5 | 0.88 | 10.5 |
RS5022-3 | 3.5 + 1.6 mm | 0.78 | 10.5 | 0.97 | 11.0 | 1.14 | 11.0 |
RS5022-4 | 4.0 + 1.6 mm | 0.95 | 11.0 | 1.20 | 11.5 | 1.43 | 11.5 |
Item No. | Nozzle Diameter (double nozzle) | 0.2 MPa Flow (m³/h) | 0.2 MPa Radius (m) | 0.3 MPa Flow (m³/h) | 0.3 MPa Radius (m) | 0.4 MPa Flow (m³/h) | 0.4 MPa Radius (m) |
RS5035-1 | 4.0 + 2.5 mm | 1.45 | 13.0 | 1.68 | 13.5 | 1.88 | 14.0 |
RS5035-2 | 4.5 + 2.5 mm | 1.66 | 14.0 | 1.94 | 14.5 | 2.18 | 15.0 |
RS5035-3 | 5.0 + 2.5 mm | 1.95 | 14.5 | 2.28 | 15.0 | 2.56 | 16.0 |
Item No. | Nozzle Color | 0.2 MPa Flow (m³/h) | 0.2 MPa Radius (m) | 0.25 MPa Flow (m³/h) | 0.25 MPa Radius (m) | 0.3 MPa Flow (m³/h) | 0.3 MPa Radius (m) | 0.35 MPa Flow (m³/h) | 0.35 MPa Radius (m) |
SP3302 | Blue | 0.42 | 7.5 | 0.47 | 7.5 | 0.51 | 8.0 | 0.55 | 8.0 |
SP3303 | Green | 0.51 | 8.0 | 0.57 | 8.5 | 0.63 | 9.0 | 0.68 | 9.0 |
Item No. | Connection | 0.2 MPa Flow (m³/h) | 0.2 MPa Radius (m) | 0.25 MPa Flow (m³/h) | 0.25 MPa Radius (m) | 0.3 MPa Flow (m³/h) | 0.3 MPa Radius (m) | 0.35 MPa Flow (m³/h) | 0.35 MPa Radius (m) |
IPRS1001 | 1/2" male thread | 0.49 | 7.6 | 0.57 | 8.0 | 0.63 | 8.5 | 0.67 | 8.7 |
IPRS1002 | 3/4" male thread | 1.45 | 12.5 | 1.56 | 13.0 | 1.68 | 13.5 | 1.88 | 14.0 |
Note: Insect-proof rotating nozzles deliver small water volumes, high spraying uniformity, and a water curtain effect. They suit low-angle sprinkler applications.
Item No. | Connection | 0.15 MPa Flow (m³/h) | 0.15 MPa Radius (m) | 0.20 MPa Flow (m³/h) | 0.20 MPa Radius (m) | 0.25 MPa Flow (m³/h) | 0.25 MPa Radius (m) | 0.30 MPa Flow (m³/h) | 0.30 MPa Radius (m) |
BMS1001 | 3/4" female thread | 0.85 | 5.5 | 0.92 | 5.7 | 1.03 | 6.3 | 1.11 | 6.8 |
BMS1002 | 1/2" male thread | 0.46 | 4.6 | 0.53 | 4.6 | 0.56 | 4.7 | 0.62 | 4.9 |
BMS1003 | 1/2" male thread | 0.77 | 4.8 | 0.85 | 5.1 | 0.84 | 5.3 | 0.92 | 5.5 |
Parameter | Specification |
Nozzle Material | High-strength engineering plastic / Metal |
Design Features | Reasonable structure, consistent hydraulic performance |
Operation | Stable operation, uniform water distribution |
Droplet Characteristics | Small droplet diameter, controlled atomization |
Applications | Vegetable fields, orchards, urban green space |
Working Pressure Range | 0.15 - 0.4 MPa (1.5 - 4.0 bar) |
Flow Rate Range | 0.42 - 2.56 m³/h |
Spray Radius Range | 4.6 - 16.0 m |
Customization | Available |
Custom Option | Details |
Nozzle sizes | Various main nozzle diameters available |
Connection types | 1/2", 3/4" male/female thread options |
Flow rates | Custom flow specifications available |
Materials | Plastic or metal nozzle options |
Product Features
Nozzles use high-strength engineering plastics or metal materials. This construction withstands continuous operation and exposure to outdoor elements, extending service life in demanding agricultural environments.
Precision-engineered nozzle designs deliver consistent hydraulic performance within the specified working pressure range. This results in uniform water distribution across the entire coverage area.
Most models feature a double nozzle configuration (main nozzle + auxiliary nozzle). Compared to single nozzle designs, this configuration increases flow rates and extends spray radii, providing flexibility to match sprinkler output to specific application requirements. Flow rates range from 0.47 m³/h to 2.56 m³/h, with spray radii from 9.5 m to 16.0 m depending on operating pressure.
The series includes various models with different connection types and nozzle sizes:
RS5022 series: 1/2" connection with 2.5-4.0 mm main nozzle options
RS5035 series: 3/4" connection with 4.0-5.0 mm main nozzle options
Rotary sprinklers (SP3302, SP3303) with blue or green nozzles
Insect-proof rotating sprinklers (IPRS1001, IPRS1002)
Butterfly-type sprinklers (BMS1001, BMS1002, BMS1003)
These sprinklers suit vegetable fields, orchards, urban green spaces, and general agricultural irrigation systems. The range of flow rates and spray radii allows matching to specific crop types, field layouts, and water availability.
Product Uses
Vegetable Fields: Suitable for overhead irrigation of vegetable crops. The small droplet size minimizes soil compaction and damage to delicate leaves while ensuring water penetration.
Orchards: Used for under-tree and overhead irrigation. Models with up to 16 m spray radii cover mature trees, including apples, citrus, and nuts.
Urban Green Spaces: Deployed in parks, public gardens, and recreational areas. The construction withstands public use and environmental exposure.
Nurseries: Provide uniform irrigation for container and field-grown nursery stock, supporting healthy plant development.
Field Crops: Used for irrigation of grains, forages, and other field crops where overhead irrigation is preferred.
Residential and Commercial Landscaping: Suit large residential properties, golf courses, and commercial landscapes.
Frost Protection: Used in orchards and vineyards to release water that forms ice and releases latent heat, protecting sensitive crops.
Select the sprinkler model based on required flow rate, spray radius, available operating pressure, connection type, and application.
Choose the appropriate nozzle size using the performance tables above.
Install the sprinkler on a riser of suitable height for the crop. Use PTFE tape on threads to prevent leaks and ensure the sprinkler is vertical.
Space sprinklers at 50-60% of their spray diameter for proper overlap. Adjust spacing based on wind conditions.
Maintain system pressure within the 0.15-0.4 MPa range. Use pressure regulators if necessary.
Pressurize the system slowly and check all sprinklers for proper rotation and coverage.
Inspect sprinklers regularly for proper rotation, nozzle wear, leaks, and uniform coverage.
Clean nozzles periodically by removing them, rinsing with clean water, and using a soft brush if needed.
Before winter, drain the system completely. Remove and store sprinklers if freezing temperatures are expected.
Inspect and clean all components before the next irrigation season.
Problem | Possible Cause | Solution |
Sprinkler not rotating | Debris in mechanism | Clean sprinkler |
Bearing worn | Replace sprinkler | |
Operating pressure too low | Increase pressure | |
Uneven coverage | Nozzle partially clogged | Clean nozzle |
Sprinkler not level | Adjust riser | |
Incorrect spacing | Adjust sprinkler spacing | |
Wind interference | Operate during calmer conditions | |
Low flow rate | Pressure too low | Increase pressure |
Nozzle worn | Replace nozzle | |
Partially closed valve | Open valve fully | |
Water leaking | Loose connection | Tighten connection |
Damaged threads | Repair or replace | |
Spray pattern distorted | Nozzle damaged | Replace nozzle |
Debris in nozzle | Clean nozzle | |
Operating pressure too high | Reduce pressure |
FAQ
An impact sprinkler uses a spring-loaded arm that strikes the water stream, causing the sprinkler to rotate slowly and distribute water in a circular pattern. They are known for long service life and long throw distances.
RS5022 has a 1/2" connection and flow rates from 0.47-1.43 m³/h, suitable for smaller areas. RS5035 has a 3/4" connection and flow rates from 1.45-2.56 m³/h, for larger coverage areas.
RS5022 offers main nozzle sizes from 2.5 mm to 4.0 mm. RS5035 offers main nozzle sizes from 4.0 mm to 5.0 mm. All models include a secondary nozzle for extended coverage.
Working pressure ranges from 0.15 MPa to 0.4 MPa (1.5-4.0 bar) depending on the model. Refer to the performance tables for optimal pressure for specific nozzles.
Flow rates range from 0.42 m³/h to 2.56 m³/h depending on model, nozzle size, and operating pressure.
