Description
Our micro sprinkler series provides precision irrigation solutions for greenhouses, nurseries, orchards, landscaping, and horticultural applications. The product line includes rotary micro sprinklers, refracted atomized micro sprinklers, and atomizing micro sprinklers, delivering water distribution with flow rates from 24.6 L/h to over 400 L/h and spray radii from 0.8m to 4.8m. Components are manufactured from materials with UV stabilizers and resistance to atmospheric chemicals and fertilizers, designed for use in agricultural environments.
Technical Parameters
Item No. | Description | Nozzle Color | Nozzle (mm) | Packaging (Pcs) | Measurement (cm) | G.W (Kgs) |

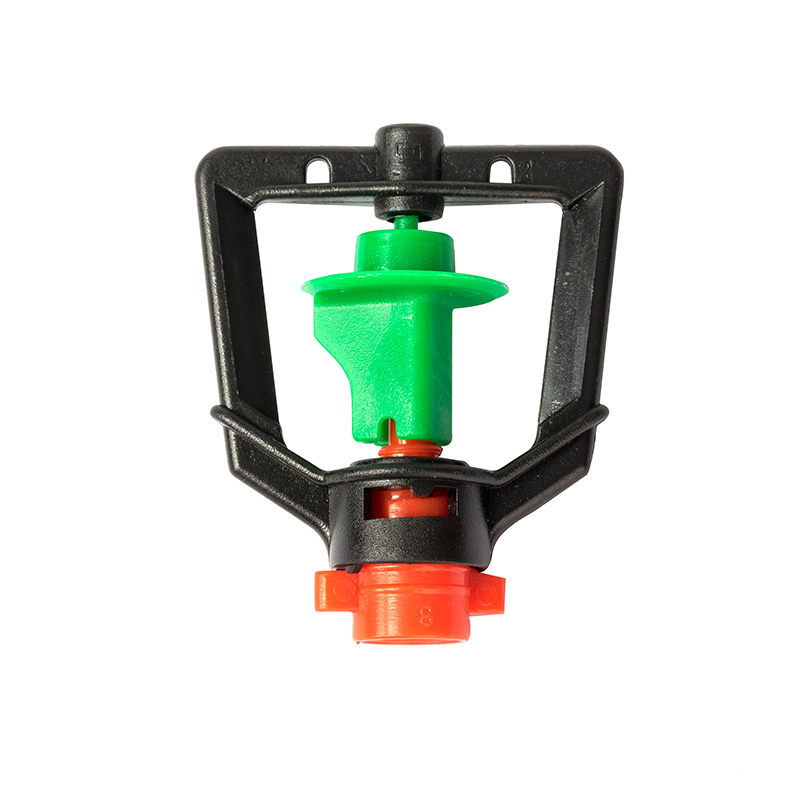

MSD1001 | Upside down rotary micro sprinkler, Green impeller | Black | 0.8 | 100/3000 | 54×35×28 | 15 |
MSD1002 | Upside down rotary micro sprinkler, Green impeller | Blue | 1.0 | 100/3000 | 54×35×28 | 15 |
MSD1003 | Upside down rotary micro sprinkler, Green impeller | Green | 1.2 | 100/3000 | 54×35×28 | 15 |
MSD1004 | Upside down rotary micro sprinkler, Green impeller | Red | 1.6 | 100/3000 | 54×35×28 | 15 |

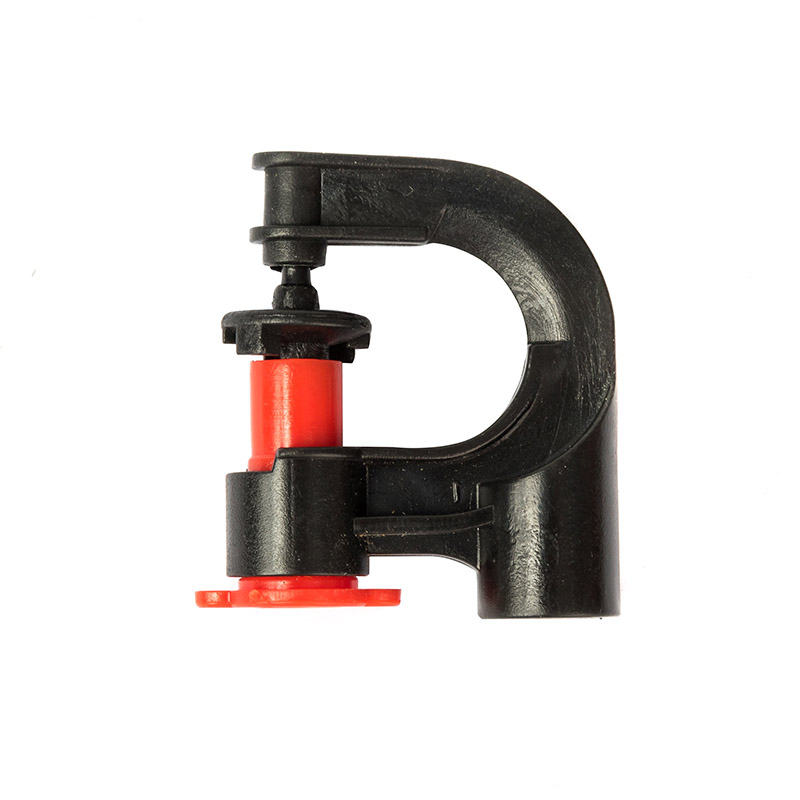

IMS1001 | Rotary micro sprinkler for inserting, Black impeller | Black | 0.8 | 100/3000 | 54×35×28 | 15 |
IMS1002 | Rotary micro sprinkler for inserting, Black impeller | Blue | 1.0 | 100/3000 | 54×35×28 | 15 |
IMS1003 | Rotary micro sprinkler for inserting, Black impeller | Green | 1.2 | 100/3000 | 54×35×28 | 15 |
IMS1004 | Rotary micro sprinkler for inserting, Black impeller | Red | 1.6 | 100/3000 | 54×35×28 | 15 |
IPMS1001 | Inset-proof rotating micro sprinkler, Black impeller | Gray | 1.0 | 100/4000 | 54×35×28 | 14 |
IPMS1002 | Inset-proof rotating micro sprinkler, Black impeller | Black | 1.2 | 100/4000 | 54×35×28 | 14 |
IPMS1003 | Inset-proof rotating micro sprinkler, Black impeller | Green | 1.4 | 100/4000 | 54×35×28 | 14 |
IPMS1004 | Inset-proof rotating micro sprinkler, Black impeller | Blue | 1.6 | 100/4000 | 54×35×28 | 14 |
IPMS1005 | Inset-proof rotating micro sprinkler, Black impeller | Red | 1.8 | 100/4000 | 54×35×28 | 14 |
IPMS1006 | Inset-proof rotating micro sprinkler, Black impeller | Orange | 2.0 | 100/4000 | 54×35×28 | 14 |

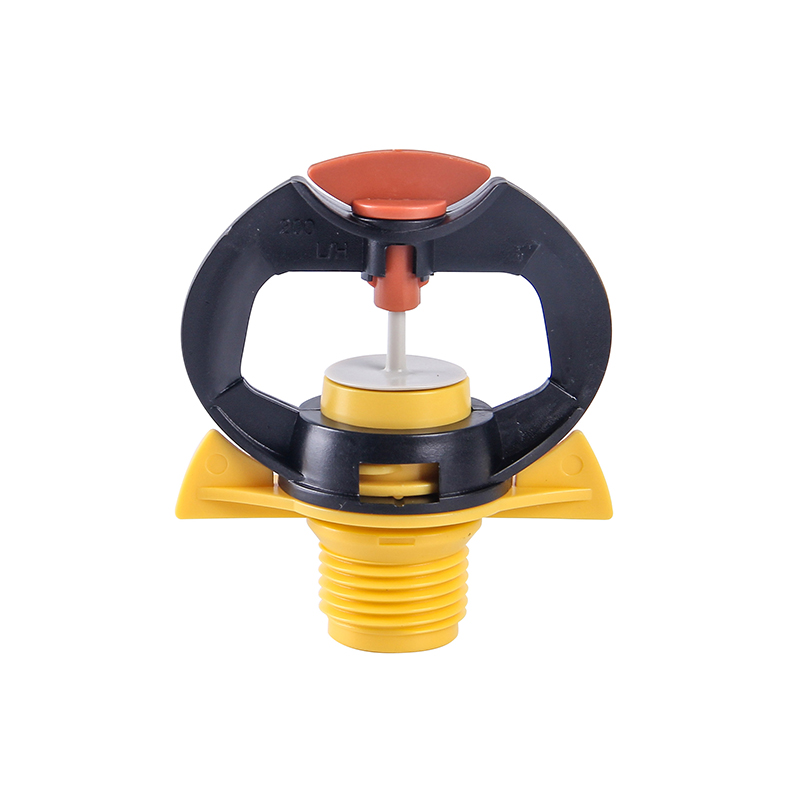

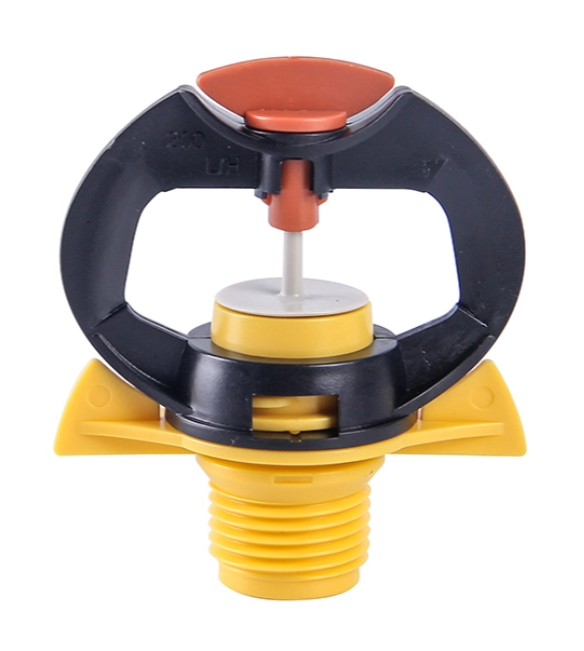

ITPMT1001 | Inset-proof male thread rotating micro sprinkler | - | - | 600 | 54×35×28 | 12.15 |
BRMS1001 | Bridgeless rotary micro sprinkler | Blue | - | 100/3000 | 54×35×28 | 26.25 |
BRMS1002 | Bridgeless rotary micro sprinkler | Grey | - | 100/3000 | 54×35×28 | 26.25 |
BRMS1003 | Bridgeless rotary micro sprinkler | Green | - | 100/3000 | 54×35×28 | 26.25 |
Item No. | Nozzle Color | Nozzle (mm) | 150 kPa Flow (L/h) | 150 kPa Radius (m) | 200 kPa Flow (L/h) | 200 kPa Radius (m) | 250 kPa Flow (L/h) | 250 kPa Radius (m) | 300 kPa Flow (L/h) | 300 kPa Radius (m) |
MSD1001 | Black | 0.8 | 24.6 | 3.2 | 28.7 | 3.2 | 31.6 | 3.5 | 34.9 | 3.6 |
MSD1002 | Blue | 1.0 | 39.7 | 3.2 | 44.9 | 3.5 | 50.0 | 3.7 | 55.6 | 4.0 |
MSD1003 | Green | 1.2 | 58.5 | 3.7 | 66.6 | 4.0 | 75.0 | 4.2 | 89.5 | 4.3 |
MSD1004 | Red | 1.6 | 73.5 | 4.0 | 86.1 | 4.2 | 98.3 | 4.4 | 110.7 | 4.4 |
IMS1001 | Black | 0.8 | 24.6 | 2.5 | 28.7 | 2.8 | 31.6 | 3.0 | 34.9 | 3.2 |
IMS1002 | Blue | 1.0 | 39.7 | 3.2 | 44.9 | 3.2 | 50.0 | 3.5 | 55.6 | 3.6 |
IMS1003 | Green | 1.2 | 58.5 | 3.4 | 66.6 | 3.5 | 75.0 | 3.7 | 89.5 | 3.9 |
IMS1004 | Red | 1.6 | 73.5 | 3.7 | 86.1 | 4.0 | 98.3 | 4.0 | 110.7 | 4.2 |
IPMS1001 | Gray | 1.0 | 42.2 | 2.1 | 47.5 | 2.3 | 51.7 | 2.5 | 58.4 | 2.8 |
IPMS1002 | Black | 1.2 | 59.0 | 2.3 | 68.6 | 2.5 | 76.2 | 2.7 | 83.2 | 3.0 |
IPMS1003 | Green | 1.4 | 79.3 | 2.6 | 97.0 | 2.8 | 100.6 | 3.0 | 106.2 | 3.2 |
IPMS1004 | Blue | 1.6 | 96.2 | 2.8 | 109.4 | 3.0 | 123.0 | 3.2 | 126.4 | 3.3 |
IPMS1005 | Red | 1.8 | 128.0 | 3.1 | 144.8 | 3.3 | 155.8 | 3.5 | 179.0 | 3.6 |
IPMS1006 | Orange | 2.0 | 149.0 | 3.2 | 168.0 | 3.5 | 189.6 | 3.6 | 213.6 | 3.7 |
ITPMT1001 | - | - | 195.0 | 4.3 | - | - | - | - | - | - |
Product Features

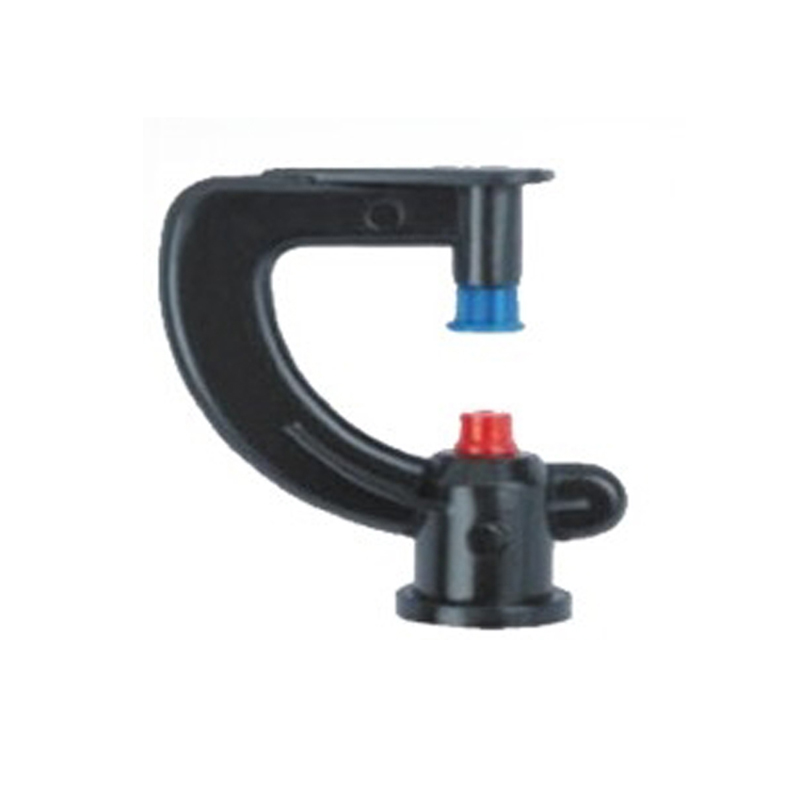

The series offers rotary micro sprinklers in upside-down and insertion types, refracted atomized micro sprinklers, G-type refractive atomized micro sprinklers, and atomizing micro sprinklers with 1 or 4 outlets. This range supports applications from greenhouse cooling to orchard irrigation.
Nozzles, impellers, and other components can be replaced to adjust flow rates and spray patterns. Color-coded nozzles (black, blue, green, red, orange, gray, yellow) allow quick identification of flow characteristics and field modifications.
Available configurations include upside-down mounting for greenhouses, insertion mounting for direct placement in soil or growing media, and male thread connections for various installation requirements.

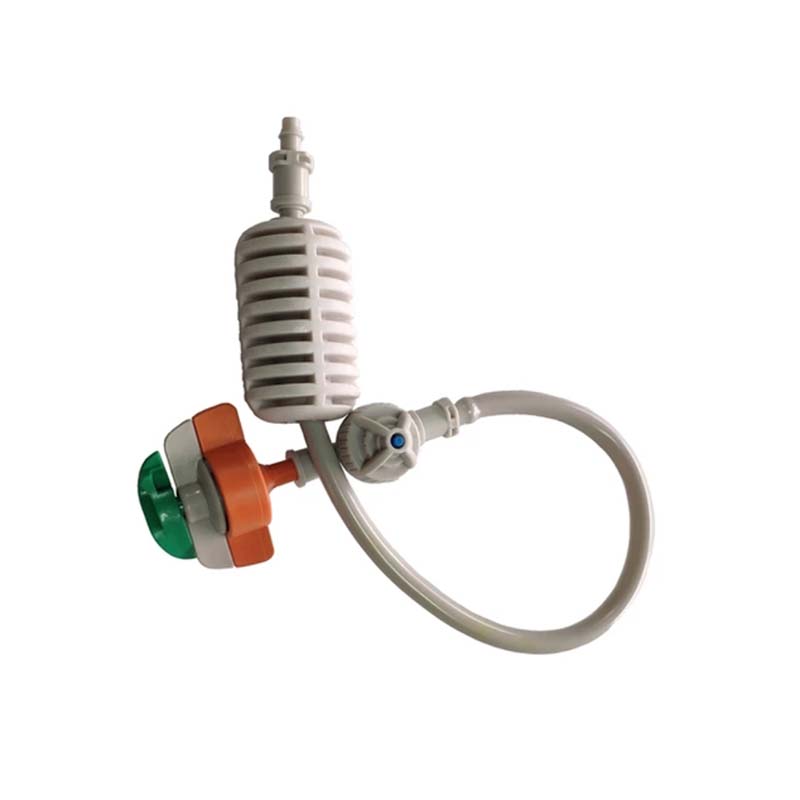

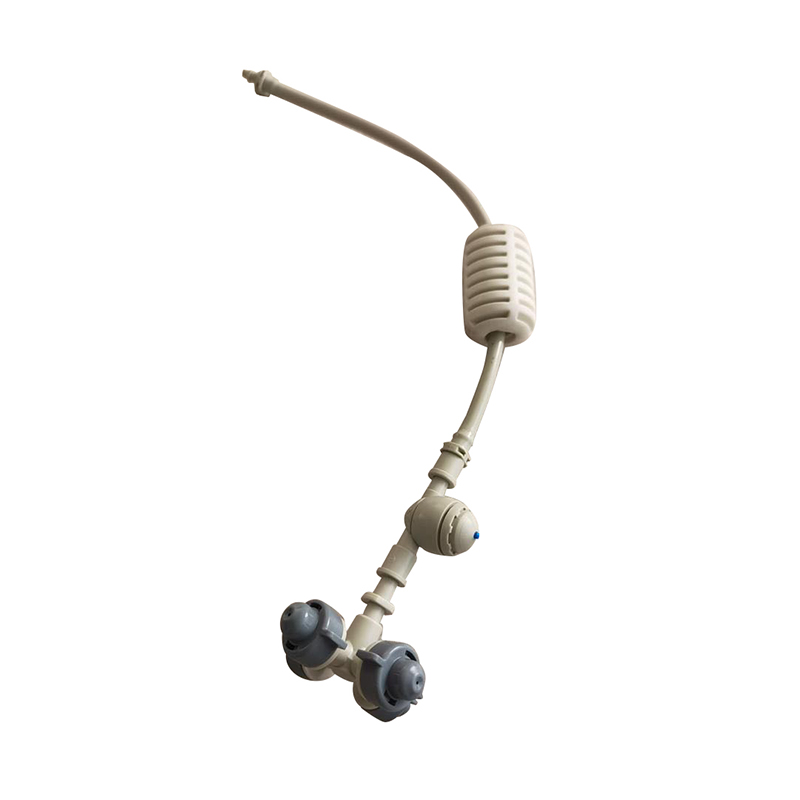

Anti-drip models stop flow when system pressure drops, preventing water waste and crop damage. Atomizing micro sprinklers produce fine mist for cooling and humidity control. Rotary sprinklers provide circular coverage for crop irrigation.
Product Uses
These micro sprinklers support multiple industrial applications: greenhouse crop production for overhead irrigation and cooling; orchards for under-tree irrigation and frost protection; nurseries for potted plants and container growing; landscaping for garden beds and ornamental plantings; field vegetable production; propagation and seedling cultivation. They also function in cooling systems for livestock facilities and outdoor commercial spaces.
FAQ
Our micro sprinkler series includes rotary micro sprinklers (upside-down and insertion types), refracted atomized micro sprinklers, G-type refractive atomized micro sprinklers, atomizing micro sprinklers with 1 or 4 outlets, and bridgeless rotary micro sprinklers.
Nozzles are color-coded by size and flow rate. Refer to the performance tables to match flow rate and spray radius to your specific application requirements and operating pressure.
Working pressure varies by model from 150 kPa to 400 kPa (1.5-4.0 bar). Refer to individual model specifications for optimal pressure ranges.
Minimum filtration of 120 mesh is recommended to prevent nozzle clogging and ensure consistent operation.
