Sand Removal Hydrocyclone Filter for Irrigation Water

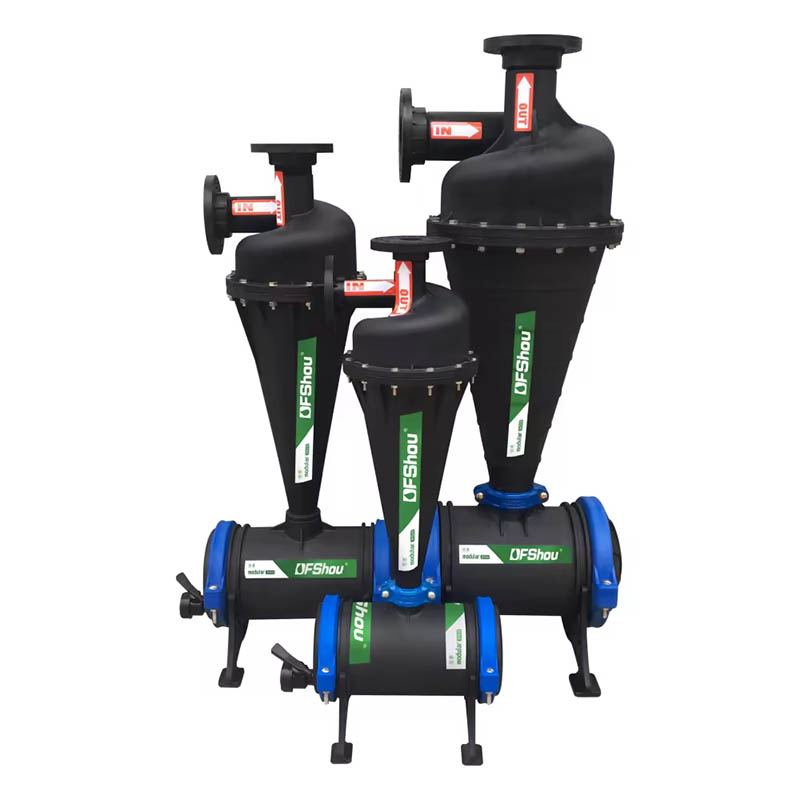

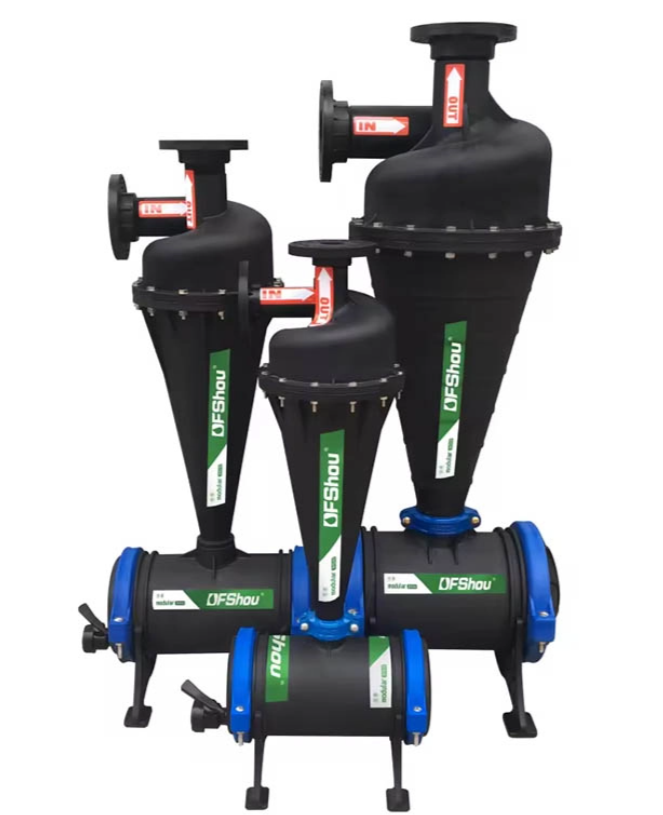

Overview of Plastic Hydrocyclone Filters

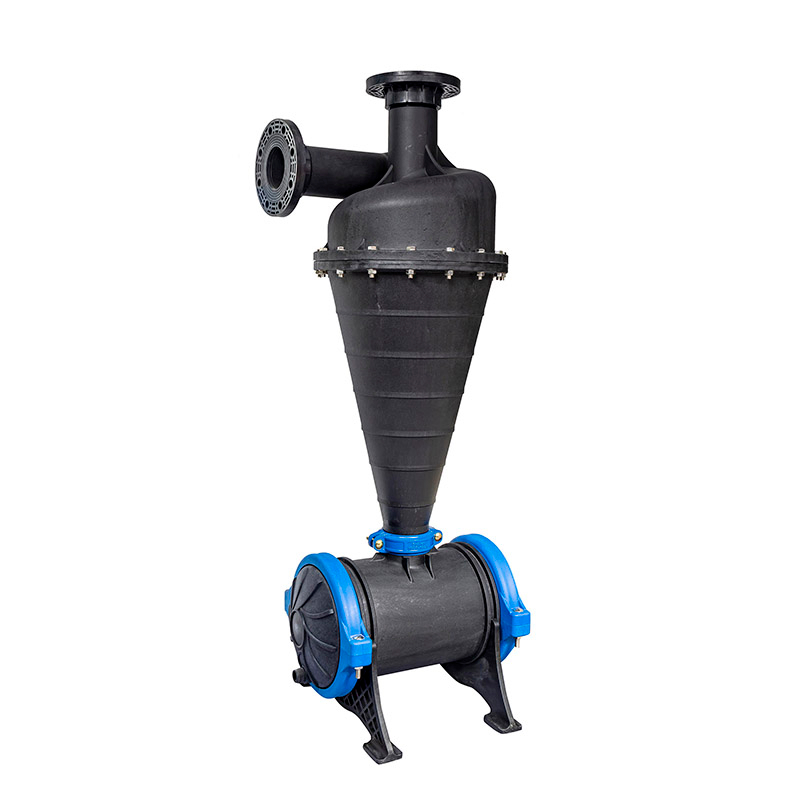

Our plastic hydrocyclone filter is a specialized filtration device that separates sand, mud, and other inorganic impurities from water using centrifugal force principles. Also known as a hydrocyclone sand separator, this filter operates without moving parts or filter elements. It relies on high-velocity spiral water flow to generate centrifugal force that throws heavy particles outward, where they settle by gravity into the collection chamber. Typically installed as a primary filter before main disc or mesh filters, it removes sand and sediment to reduce the workload of downstream filtration, enabling higher precision and longer maintenance intervals.

Customization Options

We offer customization to meet specific commercial procurement requirements: higher pressure ratings, custom sizes, threaded or flanged connection types, and larger capacity or different discharge configurations for collection chambers.

Technical Specifications of Plastic Hydrocyclone Filter

Model Specifications

Packaging Information

General Specifications

Separation Efficiency by Particle Size

Note: Efficiency varies with flow rate and particle density. Optimal performance within recommended flow range.

Customization Available

Key Benefits of Plastic Hydrocyclone Filters

Efficient Sand and Sediment Separation Without Moving Parts

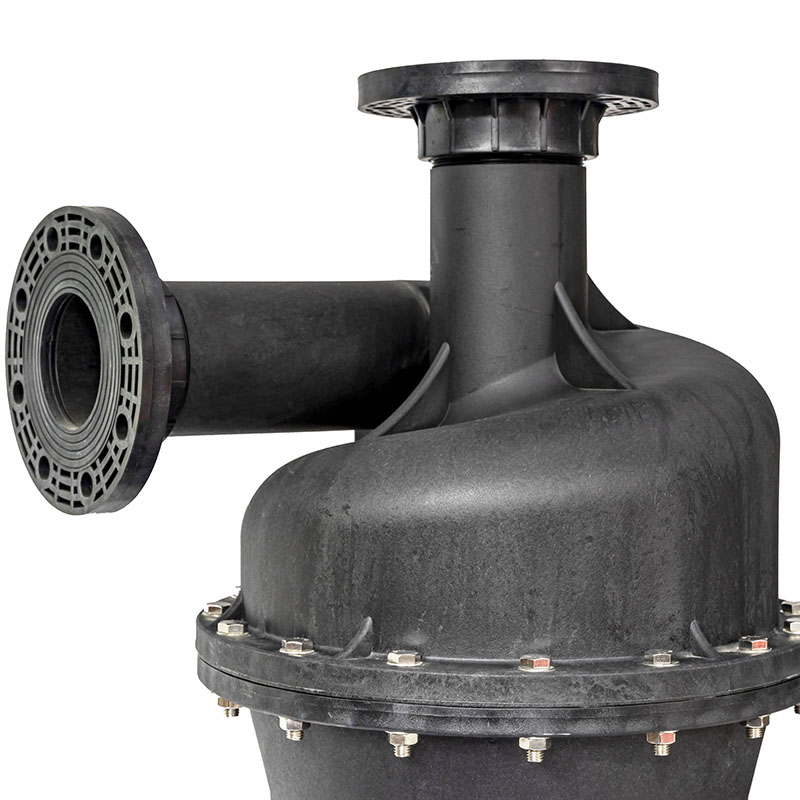

Water enters tangentially at high velocity, creating a spiral motion that forces heavy particles like sand and silt to the outer wall. These particles then settle by gravity into the collection chamber. With no moving parts or filter elements to clean or replace, the hydrocyclone operates with minimal maintenance requirements for primary sand removal.

Primary Filtration Extends Main Filter Service Life

Installed before the main disc or mesh filter, this hydrocyclone removes the bulk of sand and heavy particles, significantly reducing the workload on downstream filtration equipment. This extends main filter cleaning intervals and reduces maintenance requirements for drip and sprinkler systems.

Engineering Plastic Construction

Manufactured from engineering plastic, the filter body resists corrosion, impact, and UV degradation. Unlike metal hydrocyclones that may rust or corrode, this plastic version maintains performance in agricultural environments and resists fertilizers and chemicals.

Compact Design with Large Processing Capacity

The hydrocyclone delivers flow rates of 30-40 m³/h for the 2" model, 39-55 m³/h for the 3" model, and 71-102 m³/h for the 4" model. The space-efficient design simplifies installation in equipment rooms, pump stations, and field locations.

No Filter Elements to Clean or Replace

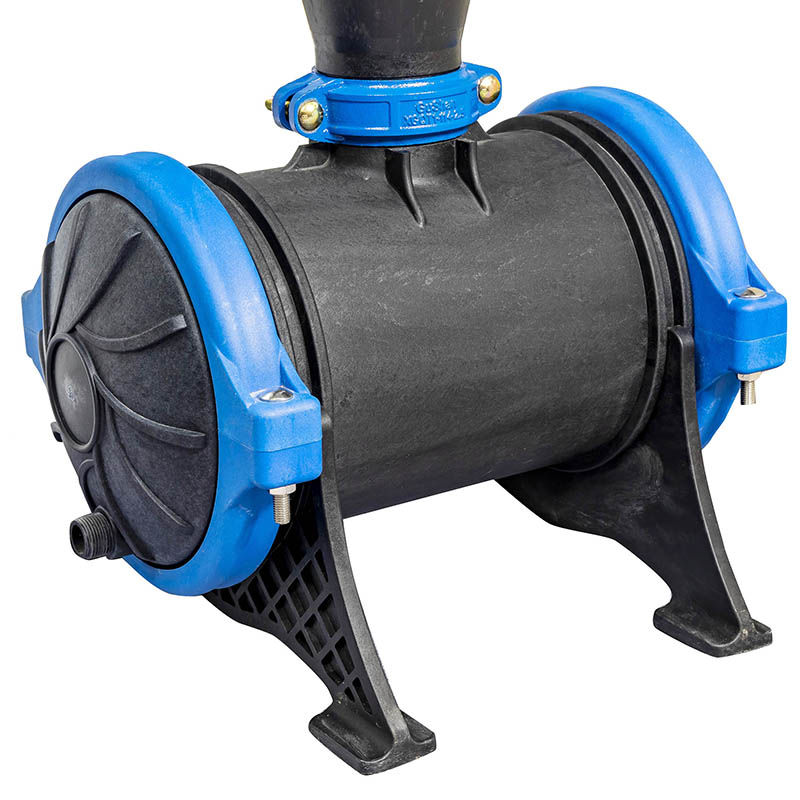

Unlike mesh or disc filters that require regular cleaning, the hydrocyclone has no filter elements. Sand accumulates in the collection chamber for periodic emptying, eliminating the need to remove, clean, or replace filter elements.

Effective Inorganic Impurity Removal

The hydrocyclone is optimized for inorganic impurities including sand, silt, and sediment. It removes particles down to 75 microns (0.075 mm) with 85-90% efficiency, protecting downstream components from abrasive damage and clogging.

Industrial Applications

Our plastic hydrocyclone filter serves essential functions across multiple applications: agricultural irrigation from sandy wells, river and canal water intake, primary protection for drip irrigation systems, pump protection, greenhouse irrigation, small-scale industrial pre-treatment, and center pivot and sprinkler systems. For irrigation systems drawing from wells with significant sand content, the hydrocyclone installed at the wellhead removes sand before it enters the pump and distribution system.

Installation and Maintenance Guidelines

Install the hydrocyclone filter vertically on a stable, level foundation before the main filter system as the primary filtration stage. Install after the pump if pump protection is needed, or before the pump if well sand is severe. The inlet connection must be tangential to create proper centrifugal flow. Maintenance consists of periodic sand removal from the collection chamber when it reaches approximately 2/3 full, with frequency depending on water sand content.

FAQ About Plastic Hydrocyclone Filter

What is the difference between a hydrocyclone filter and a regular filter?

A hydrocyclone filter has no filter element (no mesh, no discs). It uses centrifugal force created by tangential water entry to spin heavy particles like sand outward where they settle by gravity. Regular mesh or disc filters use physical barriers to trap particles and require regular cleaning of the filter element.

Why install a hydrocyclone before the main filter?

As a primary filter, the hydrocyclone removes the bulk of sand and heavy particles, significantly reducing the workload on the main disc or mesh filter. This extends main filter cleaning intervals, reduces maintenance labor, and enables higher precision filtration downstream.

What particle sizes does this filter remove?

The hydrocyclone removes sand and sediment particles down to approximately 75 microns (0.075 mm). Removal efficiency is highest for larger particles – 95-98% for particles above 100 microns.

For detailed pricing and technical support tailored to your commercial operations, contact our team today.
